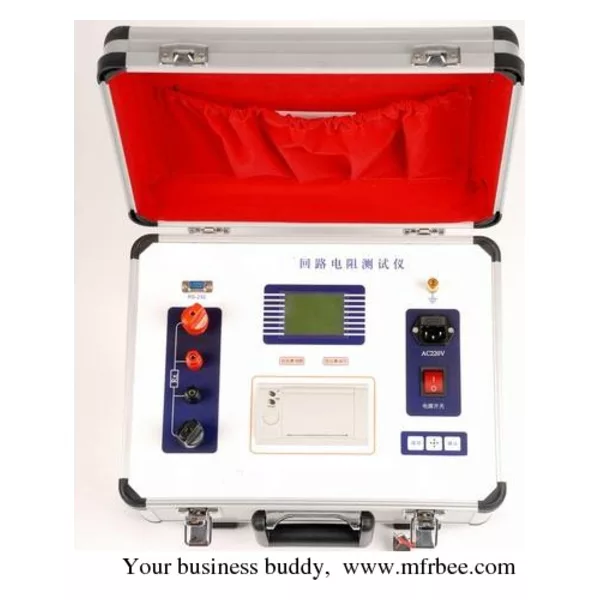

GDHL Digital Display Loop Resistance Tester

I.Application:

• GDHL loop resistance tester is applied in circuit breaker testing and power cable connection quality inspection. The max test current of contact resistance tester could be reached 600A.
• All the test results could be saved in tester or printed by micro printer.

II.Technique index:

1. Test current: 100A/200A/400A/600A DC
2. Max voltage output: 5V
3 .Test standard: IEC62271
4 .Measurement range: 0~1999.9uohm Resolution: 0.1uohm
5 .Accuracy: 0.5%RDG+0.2uohm
6. Display mode: LCD
7 .Max memory size: 100 groups of test data
8. Power output mode: succession
9. Rated power supply: AC220V ± 10%, 50Hz/60Hz
10. Environment temperature: 0-50°C
11 .Humidity: ≤85%RH
12. Size: 340mm × 280mm × 210mm
13. Weight: 7 kg
