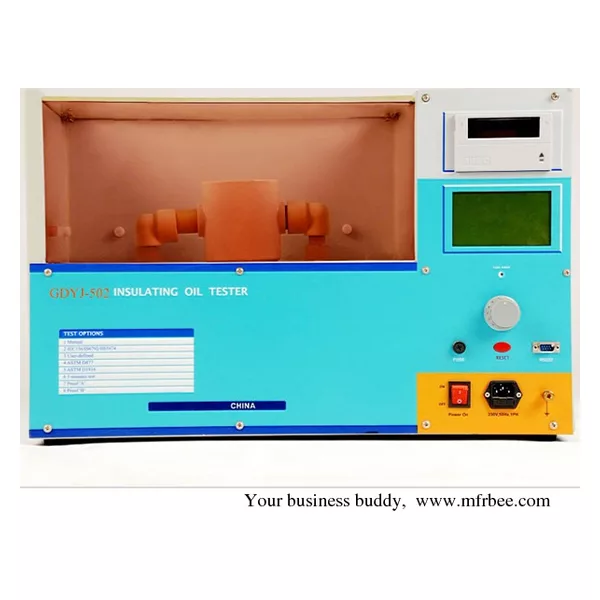

GDYJ-502 Digital Display Transformer Oil Analyzer

I.Functions:
1 Breakdown test of user-defined
2 Proof test
3 IEC60156/IS6792/BS5874 test
4 ASTM D1816 standard test
5 ASTM D877 standard test
6 5 minutes standard test
7 Manual test
8 Calibration interface for customers
9 Uploading data to PC and making word report automatically.
10 Result print

II.Technique index:
1 Output voltage:AC 0V~100KV
2 Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3 Max test times setting for user-defined mode: 9
4 Stir time setting for user-defined mode: 0~999s
5 Waiting time setting for user-defined mode: 0~999s
6 Test error: 3%RDG+0.3%FS
7 Display: 256´128 LCD
8 Maximum storage capacity: 100 groups of test data
9 Power supply : AC220V±10%, 50Hz/60Hz
10 Environment temperature: 0-50°C
11 Relative humidity ≤80%RH
12 Weight:41kg
13 Size: 620 mm*430mm*330mm

Packing:plastic box/Al-alloy box or as request

Lead Time:normally within 7~15 after the order,according diffrent type
