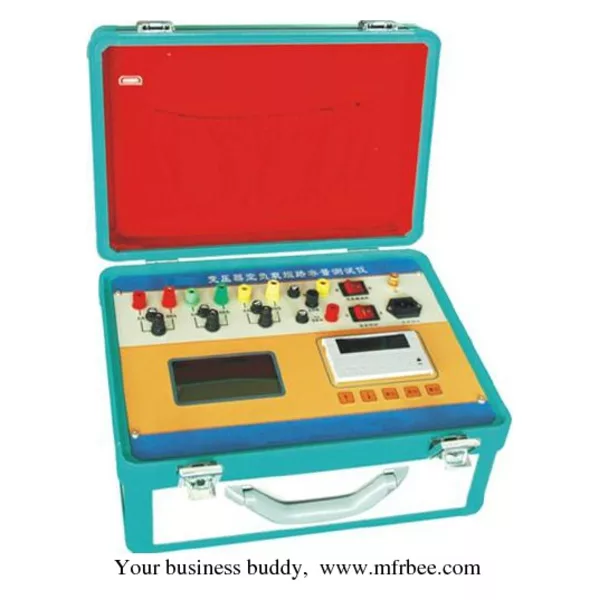

GDKF Transformer Load Tester and No-load Tester

GDKF Transformer Load Tester and No-load Tester

I. Function

• Measure the transformer load current, load loss, short-circuit voltage, short circuit (load) losses.

II.Test Item

• RMS phase voltage
• Average value of three-phase AC voltage
• Three-phase current RMS
• Percentage of no-load loss and no-load current:
• Load loss, impedance voltage, and the percentage of short-circuit impedance:
• Any given temperature, load loss, the percentage impedance voltage and short circuit impedance;
• Voltage waveform in the percentage of each harmonic component
• Current waveform in the percentage of each harmonic component;

III.Technical parameters

• Current measurement range: 100mA ~ 5A, accuracy class 0.2;
• Voltage Range: 10V ~ 650V, accuracy class 0.2;
• External transformer can broaden the scope of measurement instruments;
• Frequency Range: 40 ~ 65Hz, accuracy class 0.2;
• Power Input: AC220V ± 10%
