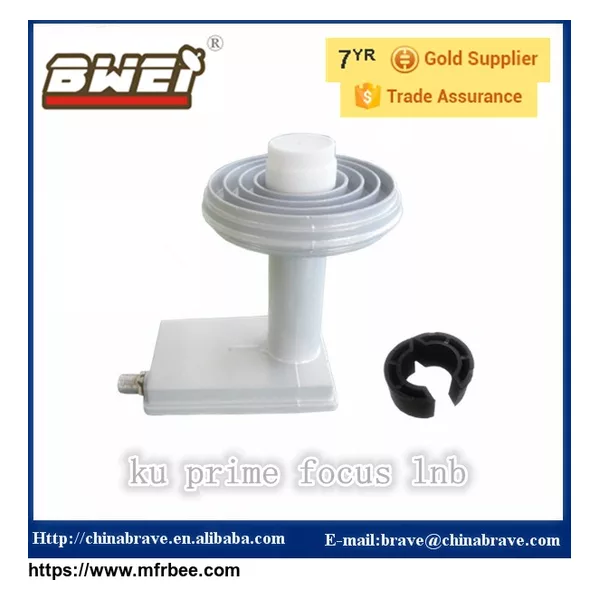

High Gain Universal Ku Band Prime Focus LNB

Product Description:
New Generation! Super Low Noise 0.1dB! HD Ready.
Professional Line - Ultimate Reliability Model!
Universal signal coverage for American and Atlantic satellites.
10.7 ~ 12.75 GHz (LO : 9.75 & 10.6 GHz)
Output frequency: 950 to 2150 MHz.
This Universal Ku band LNB can receive signal from all linear polarized Ku Band Satellites .
Features:
Super Low 0.1dB noise figure.
The lover number the better and the stronger the signal reception!
Light weight. So it won't make your support arm sag or wobble.
Compact and easy to install.
Ideal solution for offset antennas for both analog and digital satellite signal reception.
Integral feed horn with 40 mm neck.
This LNBF has been tested for excellent performance in North America, South America,Asia, Africa, Europe, and the Middle East.

universal ku band lnb specification
input frequency	10.7-12.75ghz	Supply Voltage	1)Ca:11.5-14.0v(Vertical Polarization)13VDCType 2)Cb:16.0-19.0v(HorizontalPolarization)18VDCType
output frequency	950-2150mhz	Direct Current	Direct Current
L.O.frequency	9.75/10.6ghz	Cross Pol.lsolation	20 dB(min.)
L.O. Frequency Stability	+-1.0 MHz@-40ºC to +70ºC	Operating Temperature	-40ºC to +70ºC
Noise Figure	0.1dB	L.O.Phase Noise	-50dBc/Hz@1KHz -75dBc/Hz@10KHz -95dBc/Hz@100KHz
Conversation gain	65dB	Image Rejection	45 dB(min.)
Gain Flatness	≤ +/-1.5 dB	Input VSWR	2.5:1(max)
Output Impedance	75ohms	Output VSWR	2.0:1(max)
Output connector	F-female connector	Relative Humidity	0%-95%
