Sell gold ore flotation machine/industry flotation machine @Afghanistan

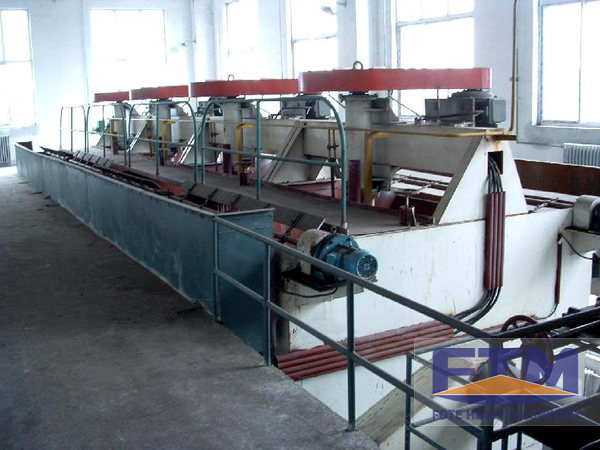

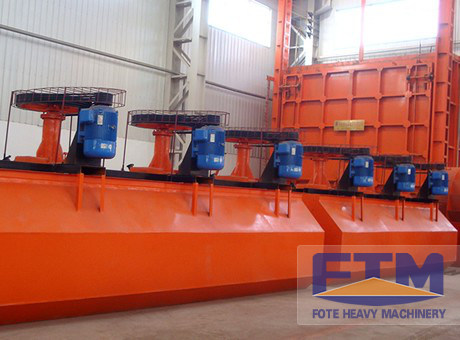

Flotation machine is the key equipment in flotation separation process, which is mainly composed of pulp chute, mixing device, air charging system, mineralized froth discharging device and electro motor. It is suitable for separating non-ferrous and ferrous metals as well as non metals such as fluorite and talc. Flotation machine uses unmanned automatic control system, thus simplifying operation. Additional, mineralization machine adopts special structure, so that the air is sheared more finely, and mixed with the pulp and medicament more uniformly and reasonably. At the same time, the mineralization system, distribution system and flotation tank are made of special wear-resistant materials which are abrasion-resistant, light and strong, thus prolonging the service life of the equipment. Especially, mineralization system is not easy to jam, so it maximize the plant extraction on the premise of meeting fine coal ash requirement.

1. The impeller and cover plate gap: the amount of inflation reduced, but the gap is too small, can cause the impeller and cover plate collision and friction, and make the amount of inflation decline. The gap is more appropriate for 5 ~ 8 mm.

2. The impeller RPM: in a certain range, the impeller rotational speed, the amount of inflation also big, but revs, impeller, power consumption, quick wear face is not stable. Pulp In addition, some brittle ore easy generation of mud cavitation phenomenon.

3. Into a pulp quantity: when into the center of the pulp impeller is the most appropriate, the largest amount inflation. But into the OARS, when large amount more than the impeller's production capacity, can jam the pulp, inspiratory difficulty, the amount of inflation of air cylinder decline. In addition, internal pulp circulation is big (that is, from the cycle of securing the hole to return to impeller in the cavity of the pulp), then the amount of inflation is big. But the power consumption will increase.

4. The upper part of the impeller pulp density: the value that is larger and the effect on the impeller is the static pressure also big, rotating impeller resistance increases, the amount of inflation smaller.

Henan Fote Heavy Machinery Co., Ltd. not only has a wealth of mining stone crushing production equipment manufacturing experience, but also has a variety of large-scale machinery production and processing equipment, to ensure normal production and manufacturing of the equipment. Moreover, our company provides a solid foundation for the smooth production of large stone crushing equipment. Welcome to visit and purchase.
