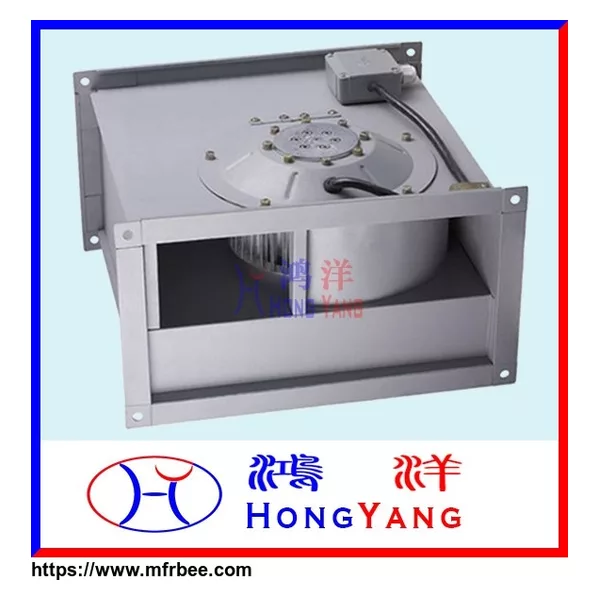

HY-JLG Rectangular Centrifugal In-line Fan
· Model: HY-JLG
Summary
Rectangular centrifugal in-line fan is a kind of centrifugal blower of forward multi-blades. It has many feature and advantages, such as: good performance, stable operation, low-noise, compact structure, easy installation and can directly connect with air duct. The impeller of this series blower is made of galvanized steel material completely. Forward and curved blade, the front and back plate is formed with precision mould, pass the balance check of static and dynamic. Stable running and reliable, good aerodynamic. The main case and motor support are made of high-quality steel plate and formed with mechanical mould. The motor is fixed on the motor support and the motor support is fixed on the reinforced top plate of main case. The shell of motor rotates to directly drive the impeller. There should not have the gas of inflammable, explosive and corrosive. The temperature of work environment should be less than 80℃.
Dimension (unit: mm)
Machine No. | L | A | A1 | A2 | B | B1 | B2 |
400x200 | 450 | 460 | 430 | 400 | 260 | 230 | 200 |
500x250 | 530 | 560 | 530 | 500 | 310 | 280 | 250 |
500x300 | 600 | 560 | 530 | 500 | 360 | 330 | 300 |
600x300 | 640 | 660 | 630 | 600 | 360 | 330 | 300 |
600x350 | 720 | 660 | 630 | 600 | 410 | 380 | 350 |
700x400 | 780 | 760 | 730 | 700 | 460 | 430 | 400 |
800x500 | 900 | 860 | 830 | 800 | 560 | 530 | 500 |
1000x500 | 980 | 1060 | 1030 | 1000 | 560 | 530 | 500 |
