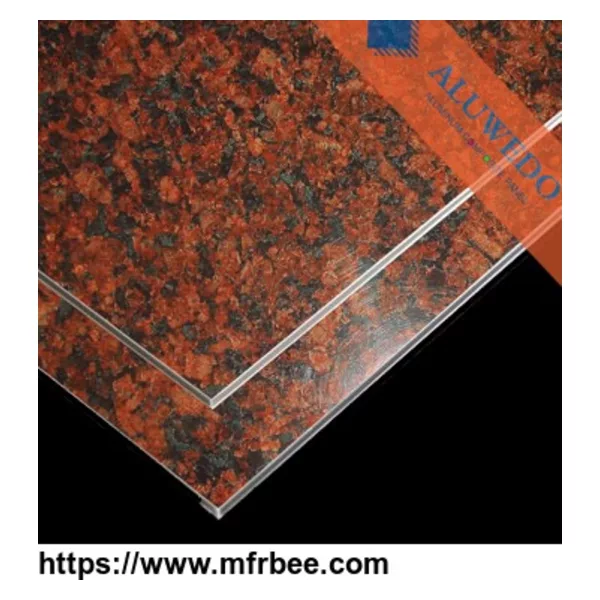

Aluwedo® Marble Aluminum Composite Panel
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Aluwedo® Marble Vien Alumin um Composite Panel is widly used for the interior and exterior decoration.
Advantages:
⢠low weight
⢠excellent flatness and high flexural strength
⢠versatile processing options using routing and folding techniques
⢠large variety of panel formats from very large to very small
â¢High gloss finish over than 95% degree
⢠easy clean surface
⢠Resistance to fungus, moss, decay and weathering light and UV
⢠extreme durability
⢠complete recyclable
Raw Material
High strength aluminum alloy A1100
LDPEcore
Surface coating:PEcoating,
Dupont Adhesive film
Panel Specifications and Dimension
Thickness:2-8mm, Recommended:3mm
Width: 1000-2000mm, Recommended: 1220mm, 1250mm, 1500mm, 2000mm
Panel length: up to 5800mm or others as required
Aluminum thickness: 0.21~0.5mm
*Custom width and length available upon request subject to minimum quantities
| Testing Item | Standard | Result |
| Unit Weight | ASTM D792 | T 3mm=4kg/m2 |
| Thermal Expansion | ASTM D696 | 24-28 |
| Thermal Deformation Temperature | ASTM D648 | 115â |
| Thermal Conduction | ASTM D976 | 0.102kcal/m.hrâ |
| Flexural Rigidity | ASTM D393 | 14.0*10^5 |
| Impact Resistance | ASTM D732 | 1.64kgf |
| Adhesive Strangth | ASTM D903 | 0.77kg/mm |
| Flexural Elasticity | ASTM D790 | 4030kg/mm2 |
| Shear Resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire Propagation | ASTM E84 | Qualified |
| Wind-Pressure Resistant | ASTM E330 | Passed |
| Properties Against Water | ASTM E331 | Passed |
