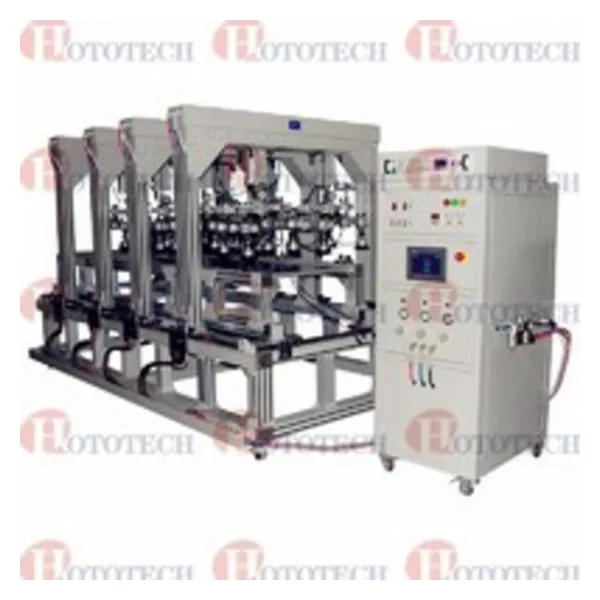

Mechanical Load tester

Standard：according to IEC 61215、UL1703、IEC 61646

Purpose：verification and ensure component under the different install angle suffer wind 、snow、or cover ice etc static 、dynamic load ability.width use to check PV component resistance press strength test , adopt dynamic holding press technical , simulate load test, in order to products under the load statue resistance press ability.

Parameter：

1．Machine table exterior size：L 320 × D 180 × H 195 cm

2．Test positive load the max 5400 Pa，negative load the max 24 00 Pa

3．Aluminum extrusion structure , platform and support under the test suffer the force statue not deformation ( aluminum surface with the paint dealing , ensure its not discolor)

4．Customization test platform clamp , can according to the pending specimen install method to do the adjust )

5．The max test size 120 × 240cm

6 . Calibrator：350 kg

7 .DC constant voltage and current power ：0~100Vor 0~15A adjustable；the resolution 0.001V or 0.001A；the voltage setting accurate more than 0.1V，current setting value accurate more than 0.1A。

8.．Cylinder number：4 groups, in total 8 pcs

　　　　Cylinder outside diameter 80mm

　　　　Pneumatic cylinder single the max pressure > 6 bar

　　　　Pneumatic cylinder single group the max put out force > 300 kg

　　　　Pneumatic cylinder stretch stroke：150 mm

9.sucker number 8 groups , in total 32 PCS

　　　　Sucker diameter：120 mm

　　　　Every pneumatic attach a vacuum pressure monitor

　　　　Between the two suckers mid point spacing can adjust 120mm~ and 400mm
