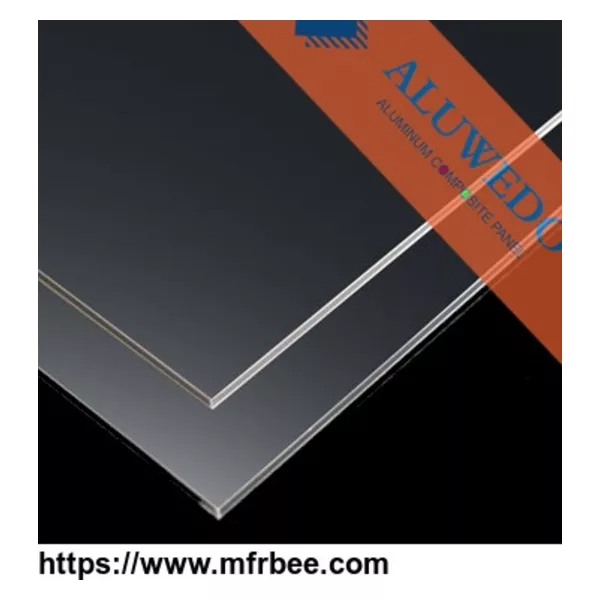

Aluwedo® PVDF aluminum composite panels
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Aluwedo® PVDF aluminum composite panels are produced by
advancedautomatic machine with German technique. In two layers of aluminum sheets in high
strength with aluminum type A1100, A3003 and A5052. formed by low density polythene (LDPE) and DUPONT adhesive film with
continuously
high temperature and high press. The surface aluminum sheet
has been coated with 70% PVDF. And the backside aluminum sheet has been protected with an anti-corrosive primer
coat.
Raw Material
High strength aluminum alloy A1100, A3003, A5052
LDPEcore
Surface coating: PVDF coating, Hylar 5000 or Kynar 500
Dupont Adhesive film
Panel Specifications and Dimension
Thickness:3-6mm, Recommended: 4mm
Width: 1000-2000mm, Recommended: 1220mm, 1250mm, 1500mm, 2000mm
Panel length: up to 5800mm or others as required
Aluminum thickness: 0.3~0.5mm
*Custom width and length available upon request subject to minimum quantities
| Testing Item | Standard | Result |
| Unit Weight | ASTM D792 | T 4mm=5.5kg/m2 |
| Thermal Expansion | ASTM D696 | 24-28 |
| Thermal Deformation Temperature | ASTM D648 | 115â |
| Thermal Conduction | ASTM D976 | 0.102kcal/m.hrâ |
| Flexural Rigidity | ASTM D393 | 14.0*10^5 |
| Impact Resistance | ASTM D732 | 1.64kgf |
| Adhesive Strangth | ASTM D903 | 0.77kg/mm |
| Flexural Elasticity | ASTM D790 | 4030kg/mm2 |
| Shear Resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire Propagation | ASTM E84 | Qualified |
| Wind-Pressure Resistant | ASTM E330 | Passed |
| Properties Against Water | ASTM E331 | Passed |
