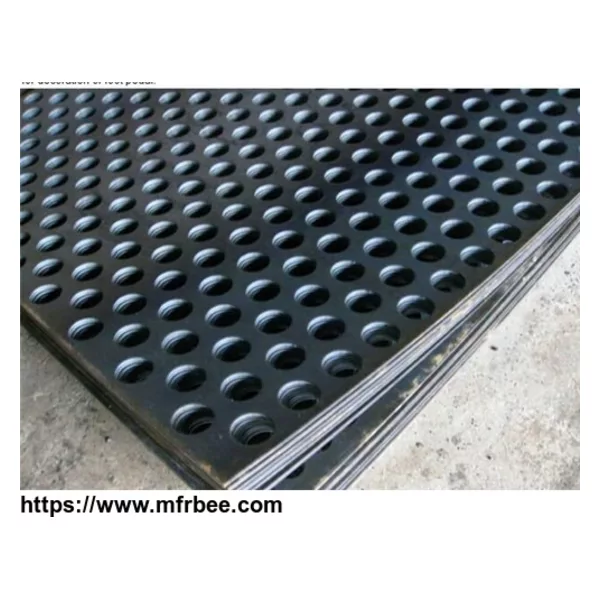

Perforated Metal Mesh

Perforated Metal Mesh

Perforated Metal Mesh: Perforated metal mesh usually use galvanized steel, stainless steel, copper steel, aluminum steel, nickel steel and alloy steel as material. Our products made by model though advanced CNC equipment,. Our products have the advantage of high precision, small error and good quality. The range of punch diameter is from 0.3mm to 100mm, it can be made to the equal diameter, which is 0.5 mm stainless steel plate can be punched to hole with the diameter of 0.5 mm

Feature of perforated metal:

oEasily processed. There are a variety selection of plate thickness, pore size and arrangement.

oBeautiful appearance, through painting or polishing,our products have the advantage of abrasion resistance and long service life.

oUniform mesh and smooth surface.

oLow cost, easy to install.

Material: The raw material usually is stainless steel carbon plate, galvanized plate and cold rolled coil, etc.

The classification of perforated metal:

Galvanized perforated metal

Galvanized Perforated Metal is made of high quality low carbon Galvanized steel sheet is perforated on the digital control perforated machines. Galvanized Perforated Metal has the features of good strength-to-weight ratio, wide range of open area percentages, accurate hole size, available in corrosion resistant materials, available in lightweight material and suitable for decorative applications.

Specification:

1.The thickness of coil from 0.2mm to 1mm, the length from 1m to 20m, the diameter from 0.8mm to 10mm.

2.The thickness of plate from 0.3mm to 10mm, size 1.53m, the diameter from 0.8mm to 100mm. Specific style can be made according to customers’ requirements.

Process of Perforated Metal:

1.Hot-dipped galvanized perforated metal. Immersed thin steel plate into the zinc bath, made the surface adhere the layer of zinc. Currently the production of continuous galvanizing process is the most common, which is that rolled steel sheet was continuously immersed in a molten zinc plating bath and then be made to galvanized steel;

2.Electronic galvanized perforated metal. This kind of perforated metal have a good ability of being processed. But the coating is thin, the corrosion resistance not as good as hot-dip galvanized sheet method.

Stainless steel perforated metal

Stainless Steel Perforated Metal is made of high quality Stainless Steel sheet/coil though being perforated on the digital control machines. Stainless Steel Perforated Metal is used in a variety of corrosive atmospheres; its long life depends on its seemingly high cost.

Specification: The thickness of coil from 0.2mm to 0.7mm, the length from 1m to 20m, the diameter from 2mm to 20mm. The thickness of plate from 0.3mm to 3mm, the minimum aperture is 0.6mm.

Aluminum perforated metal

Aluminum Perforated Metal is made of high quality aluminum sheet/coil though being perforated on the digital control perforated machines. Aluminum perforated metal has the features of good strength-to-weight ratio, wide range of open area percentages, accurate hole size, available in corrosion resistant materials, available in lightweight material and suitable for decorative applications.

Hole shape: Round hole, square hole, long round hole, triangle hole, scale hole, diamond hole, oval hole, hexagonal hole, slot hole, and so on.

The application of perforated metal:

oUsed in environmental noise control barriers, such as, highway, railway, subway, etc.

oAs sound-absorbing material of the building ceiling and wall.

oUsed for building stairs, balconies, beautifully decorated plate of green furniture.

oProtective cover for the machinery and equipment, ornate speaker enclosures.

oUsed as kitchenware, such as, stainless steel fruit basket, food cover, fruit tray, etc.

oShopping network with shelves, decorative exhibition units.

oGrain storage within the ventilation network, soccer turf seepage water treatment network, and so on.
