Barbed Wire
Products information: Barbed wire is twisted and weaved by high quality galvanized wire and PVC wire.
Feature: Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.
Material: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
Patterns available: Single Twisted Barbed Wire/ Double Twisted Barbed Wire/ Traditional Twisted Barbed Wire.

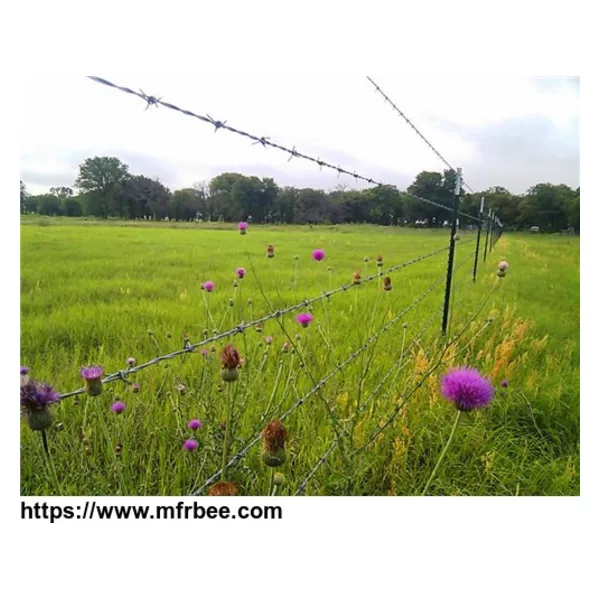

Application: Barbed wire mainly used in protecting of grass boundary, railway, highway, wine, prison, etc.
Packing: Plastic inside, hessian outside Plastic inside, waving bag outside.
1.In nude;
2.In iron axletree;
3.In wood axletree;
4.In wood pallet.
Specifications of Barbed Wire | ||||
Gauge of Strand and Barb in B.W.G. |
Approximate Length per kilogram in Meter | |||
Barbs Spacing 3" | Barbs Spacing 4" | Barbs Spacing 5" | Barbs Spacing 6" | |
12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
