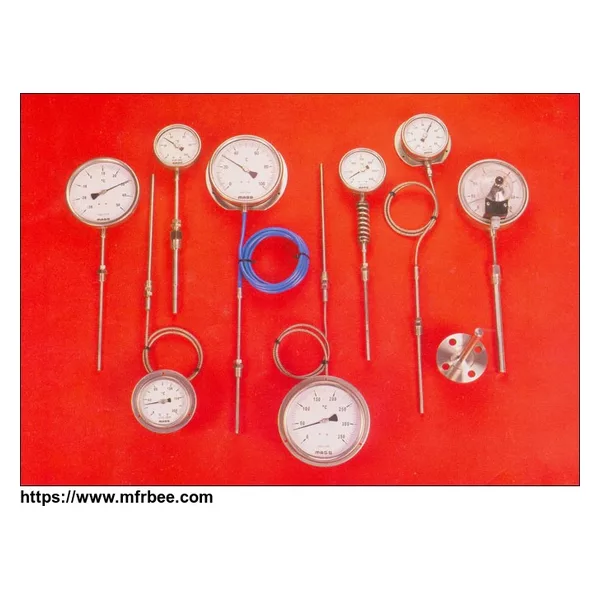

Dial Size | 100mm, 115mm & 150mm |
Accuracy | + - 1% of full scale |
Bourdon | Ss316/SS316L |
Temperature Element | Mercury actuated |
Capillary Material | Micro bore M.S. / SS316 |
Capillary Protection | SS304 tubing with PVC or SS304 Armoured from 1m to25m |
Case | M.S. / SS304 snap action bayonet type IP 65 |
Movement | SS 304, SS316 & Brass |
Stem & Bulb | ANSI SS316 |
Stem Dia | 6mm, 8mm, 10mm & 12mm |
Joints | Argon arc welded |
Pointer | Micrometer zero adjustment type |
Window | Toughened / Shatter proof glass |
Process Connection | Vi NPT /BSP adjustable SS316 |
Mounting | Bottom, Back and Every angle |
Ranges in °C |
0 - 50 to 600, -38 to 50 & other compound ranges. Range in °F & scale on request. |
Accessories Option | Thermowells, Dual scale and calibration certificate. Antivibration fitting, Filling liquid (Glycerin or Silicon oil) and Electrical contact |
