Steel Wire Reinforced Concrete Pump Hose

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Steel wire reinforced concrete pump hose, also called steel wire reinforced concrete delivery hose, is widely used in concrete placement industry, such as bridge, large dams and port construction. The hose is composed of three parts: tube, reinforcement and cover. Tube is made from chloroprene rubber, making the hose can stand up to the highly abrasive concrete. Reinforcement is made from 2 or 4 layers of high tensile steel wires, which makes the steel wire reinforced concrete pump hose work well in the high pressure environment. Cover is made from chloroprene rubber, which is resistant to weather, ozone, corrosion and abrasion.

Steel wire reinforced material handling hose is suitable for various concrete wet spraying machines, pumps and other pneumatic equipment of cement and mineral products delivery. It is highly resistant to abrasion, making it work well in extremely harsh working conditions. And its excellent abrasion resistance performance prolongs its service life. It has good flexibility, making it easy to handle for workers. What's more, its structure makes it resistant to kink. Besides, it is easy to clean and it can bear the reverse negative pressure in the cleaning process.

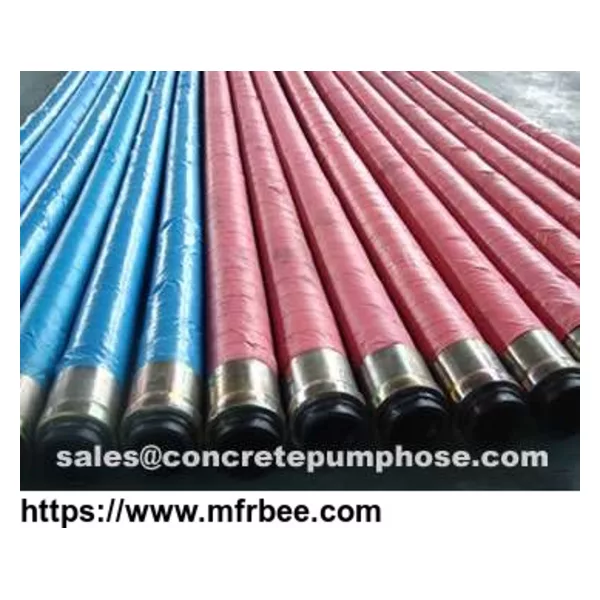

Many steel wire reinforced concrete pump hose assemblies are on the floor of the workshop.
Steel wire reinforced concrete pump hose assemblies.

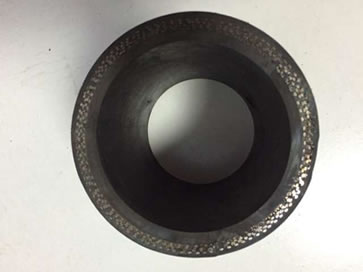

The cross section picture of steel wire reinforced concrete pump hose.
Steel wire reinforced concrete pump hose cross section.
Many blue steel wire reinforced concrete pump hoses are on the floor of the workshop.
Blue steel wire reinforced concrete pump hose.

Our advantage:

  • The tube of steel wire reinforced concrete pump hose is made from high quality chloroprene rubber, which has excellent abrasion resistance.
  • The reinforcement of steel wire reinforced concrete pump hose is made from multiple layers of high tensile steel wires, and the steel wires we use meet international standard.
  • The connectors of steel wire reinforced concrete pump hose are treated with carburization, making the abrasion resistance performance improve greatly.
  • The connections between connectors and hoses are very smooth, no steps.

The details of steel wire reinforced concrete pump hose:

  • Structure: steel wire reinforced concrete pump hose is composed of three parts: tube, reinforcement and cover.
    • Tube: resistant to abrasion synthetic rubber, principally chloroprene rubber.
    • Reinforcement: multiple layers of high tensile steel wires.
    • Cover: resistant to abrasion, weather, ozone and corrosion synthetic rubber, mainly chloroprene rubber.
  • Temperature range: -30°C to +80°C.
  • Inner diameter: 2" to 6" (51mm to 152mm).
  • Outside diameter: 68mm to 186mm.
  • Working pressure: 85 bar.
  • Burst pressure: 200 bar.
  • Bend radius: 200mm to 570mm.
The specification of steel wire reinforced concrete pump hose
Hose code Specification (ID - layers) ID OD Working pressure Burst pressure Bend radius Weight
mm mm bar bar mm Kg/m
SWRCPH-01 2" - 2 51 ± 0.7 68 ± 1.5 85 200 200 2.80
SWRCPH-02 2.5" - 2 64 ± 0.8 85 ± 1.5 85 200 250 4.30
SWRCPH-03 3" - 4 76 ± 10 102 ± 1.5 85 200 270 6.00
SWRCPH-04 3.5" - 4 89 ± 1.0 116 ± 1.5 85 200 290 7.50
SWRCPH-05 4" - 4 102 ± 1.0 130 ± 2 85 200 300 9.10
SWRCPH-06 4.5" - 4 114 ± 1.0 143 ± 2 85 200 320 10.5
SWRCPH-07 5" - 4 127 ± 1.0 158 ± 2 85 200 360 12.8
SWRCPH-08 6" - 4 152 ± 1.0 186 ± 2 85 200 570 17.0

Application of steel wire reinforced concrete pump hose:
Steel wire reinforced concrete pump hose is mainly used to transfer highly abrasive materials, such as concrete, cement and plaster in many large projects, such as building, bridge, tunnel, beam and swimming pool.

Several workers are pouring concrete to the building with steel wire reinforced concrete pump hoses.
Steel wire reinforced concrete pump hose can be used to transfer concrete in the building construction.
Several workers are pouring concrete to the bridge which is under construction with steel wire reinforced concrete pump hoses.
Steel wire reinforced concrete pump hose can be used to transfer concrete in the bridge construction.
Several workers are pouring concrete to the roof which is under construction with steel wire reinforced concrete pump hoses.
Steel wire reinforced concrete pump hose can be used to transfer concrete in the roof construction.
A person is pouring concrete to the tunnel which is under construction with steel wire reinforced concrete pump hoses.
Steel wire reinforced concrete pump hose can be used to transfer concrete in the tunnel construction.
