Reducing Concrete Pump Hose

Minimum Order
1
Packaging
N/A
Delivery
15 Days

We provide our customers with complete concrete pump hoses, including steel wire reinforced concrete pump hose

The structure of reducing concrete pump hose is the same as that of steel wire reinforced concrete pump hose. Namely, reducing concrete pump hose is made from three parts: tube, reinforcement and cover. Tube is made from high quality NR synthetic rubber, which makes the hose resistant to abrasion. Reinforcement is made from multiple layers of high tensile steel wires or polyester cords. Cover is made from chloroprene rubber, which makes concrete pump hose resistant to weather, ozone, corrosion, abrasion and cutting.

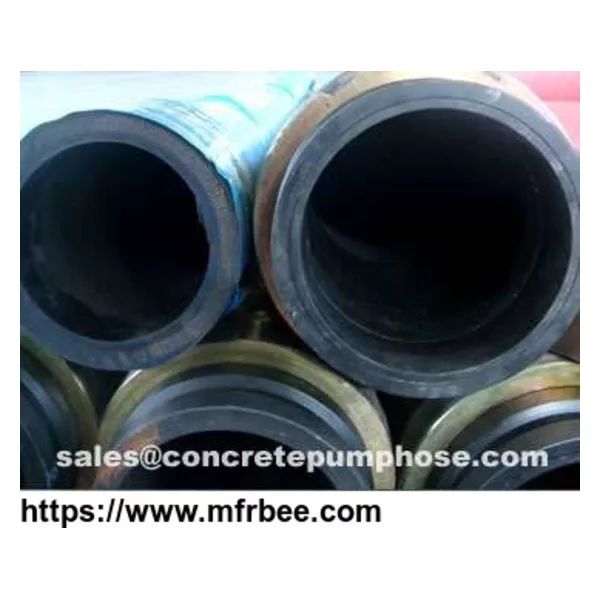

Reducing concrete pump hose.

Reducing concrete pump hose cross sections.

The advantage of reducing concrete pump hose:

  • It has less weight at the boom tip, making it easier to operate for workers.
  • It can control smooth concrete flow, and it can eliminate splatter.
  • It is convenient for the application of different diameters.

The details of reducing concrete pump hose:

  • Structure: reducing concrete pump hose is composed of three parts: tube, reinforcement and cover.
    • Tube: resistant to high abrasion, mainly NR synthetic rubber.
    • Reinforcement: multiple layers of high tensile steel wires or polyester cords.
    • Cover: resistant to weather, ozone, corrosion, abrasion and cutting synthetic rubber, mainly cutting.
  • Temperature range: -30°C to +80°C.
  • Size: 5" - 4", 5" - 3.5", 5" - 3", 4" - 3.5" and 4" - 3".
  • Working pressure: 55 bar or 80 bar.
  • Length: 3m, 3.5m and 4m.
The specification of reducing concrete pump hose
Hose code Size Working pressure Working pressure
Inch bar bar
RCPH-01 5" - 4" 55 80
RCPH-02 5" - 3.5" 55 80
RCPH-03 5" - 3" 55 80
RCPH-04 4" - 3.5" 55 80
RCPH-05 4" - 3" 55 80
We can also manufacture reducing concrete pump hose according to customers' requirements.
