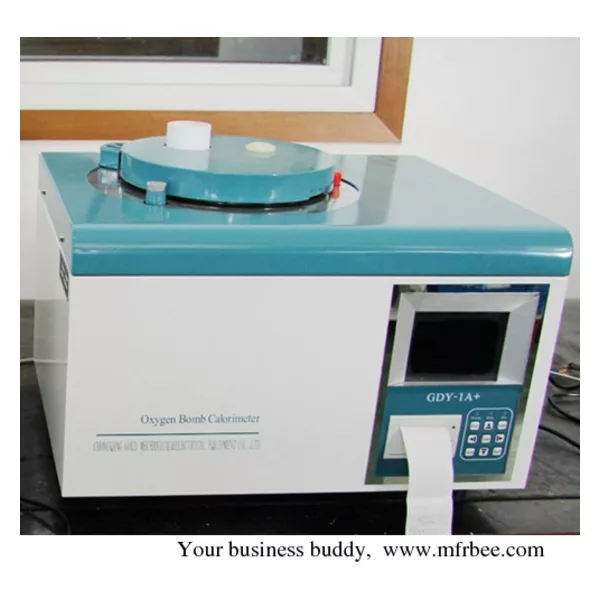

GDY-1A+ Fuel Calorific Value Oxygen Bomb Calorimeter
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
GDY-1A+ Oil Fuel Calorific Value Bomb Calorimeter
- The instrument is designed and made as per the National Standard of People’s Republic of China GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People’s Republic of China JJG672-2001 Oxygen Bomb Calorimeter, as well as Enternprise Standard of GDY Series Oxygen Bomb Calorimeter.
I.Main technical features
- The instrument adopts technology of single chip machine, LCD screen, high accuracy temperature sensor and high performance A/D conversion device. It is a highly intelligent instrument.
- The test procedure is fully automatic. After placing the sample and inputting the right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is over.
- This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel material.The strength is enough to resist 20MPa hydrostatic test under room temperaturer
II.Main technical specifications and parameters
| Heat capacity | 14400 J/K~14500 J/K |
| Resolution | 0.001 K |
| Measurement accuracy | ± 60J/g |
| Repeatability | ≤0.2% (Grade C) |
| Pressure endured of oxygen bomb | 20 MPa |
| Temperature measurement range | 10 °C~28 °C |
| Relative humidity | ≤85% |
| Power supply | AC 220V±5%, 50 Hz |
| Overall dimension | 600mm*480mm*460mm |
(Note: The press machine is optional accessory)
