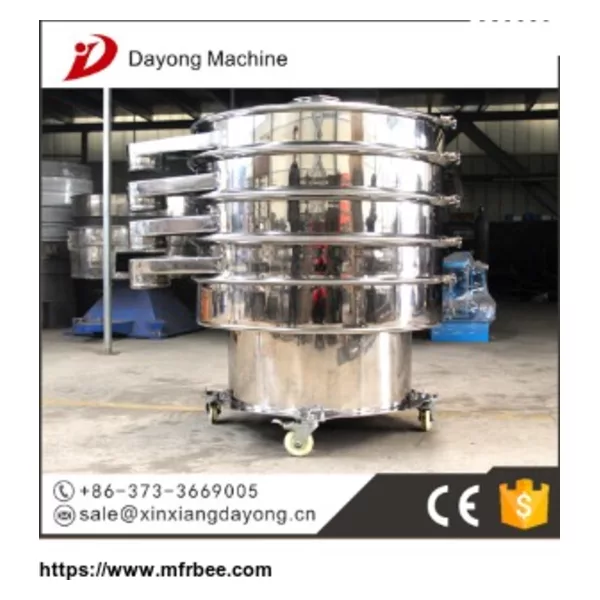

sand vibrating screen
Product Quick Detail
- Place Of Origin
- china
- Packaging
- Wooden packing. the packing size should be according to the actual size
- Delivery
- 15 Days
Specifications
single deck sand vibrating screen,china prodessional vibrating screen
About our company
Our company is the manufacturer which produces manufacture of the vibrating screen for many years.Our company is a new-type shareholding system company which combines several decades of manufacturing experience and modern technology together.We are direct factory.Our company can customize professional product according to the client's desire.the first-class product quality.the reasonable price products. meticulous after-sale service.
Product introduction
| Working principle | By means of a hammer (unbalance hammer) mounted along the motor shaft, DYZ Series 3-D Vibrating Screens convert the rotation of the motor into a 3-D movement,i.e. horizontal,vertical and inclined movement.Then the 3-D movement is transferred to the screen surface,which leads to an involute movement of the materials on the screen surface. |
| Main Parts | Dust cover,Upper ledge,Small clamps,Mesh frame,Bottom frame,U-shaped aprons,V-shaped aprons,Big clamps, Vibration body,Vertical vibration motor,Spring,Bottom tube |
| Advantages | 1.Mesh screen with more sieve mesh number can be used |
| 2.Large screening volume,capacity,low noise,easy and reliable to operate | |
| 3.Multi-layer screen with far more sieve mesh number can also be applied | |
| 4.The tricky powder can also be screened efficiency | |
| 5.High efficiency, elegant design & durable, available for any powder, particles and viscous liquid | |
| 6.All material contact parts are stainless-steel 304 | |
| 7.Easy to operate, easy to change the screen mesh, easy to clean | |
| Application | 1.Abrasive & Ceramics: alumina, quartz sand, slurry, atomizing soil particles 2.Chemical: resin sand, pigment, washing powder, micropowder, paint, soda ash, lemon powder, rubber and plastics 3.Food: sugar, salt, soda, MSG (monosodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar, etc 4.Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid, waste water recycle 5.Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc 6.Pharmaceutical: TCM (traditional Chinese medicine) powder, TCM liquid, western medical powder, western medical liquid, TCM & western medical particles, etc 7.Environment Protection: rubbish, excrement, waste oil, food effluent, waste water processing, etc |
Technical parameters of single deck sand vibrating screen
| single deck sand vibrating | ||||
| Model | Power(KW) | Diameter of screen surface(Φ) | Volume | Deck |
| DY-600-1S | 0.55KW | 550mm | 800*800*680 | 1 |
Part of achievements
| Countries | Product | Model | Quantity | Unit |
| Australia | DY-400-3S | Standard vibrating screen | 2 | Set |
| Algeria | DY-600-2S | Standard vibrating screen | 5 | Set |
| Cameroon | DY-1000-2S | Standard vibrating screen | 1 | Set |
| Algeria | DY-1000-2S | Standard vibrating screen | 2 | Set |
| USA | DY-1800-2S | Standard vibrating screen | 8 | Set |
After-sale service
We have been implementing 6S management,and been certified with ISO9001 quality management system and other occupation healthy and safety administrate system.
