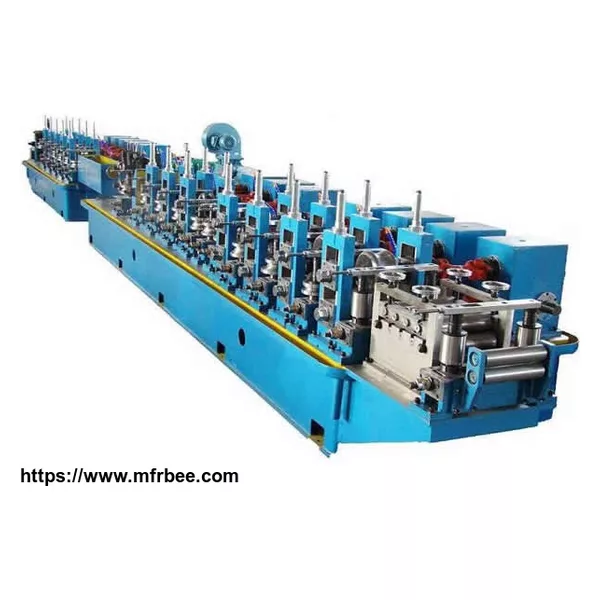

Welded Steel Pipe Production Line

HG20 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of Ф10-32mm in diameter and 0.5-1.5mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line’s each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.

1. The production process:
Raw material (strip) →feeding→Cutting and Welding →Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → Packing → Storage
2. Adapt materials:
Hot rolled or cold rolled steel strip
Material: Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
3. Processing steel pipe size range:
(1) Processing range: Round pipe Φ20-Φ32mm.
Square&Rectangular pipe 10x10—25x25
(2) Thickness of Round pipe: 0.5-1.5mm
Thickness of Square&Rectangular pipe: 0.5-1.0mm
4. Installed capacity: 200KVA
5. Water consumption: 20m3/h
6. Solid-state high-frequency Welder: 100KW
7. Workshop Request: length, width and height 30-50m X 12m X 5m
8. Forming speed: 80-120m/min
For more details please contact our company immediately,thank you!
