Tube Welding Prodcution Line

Minimum Order
1
Place Of Origin
China
Packaging
Waterproof and seaworthy plywood case
Delivery
Within 2 months after received the prepayment

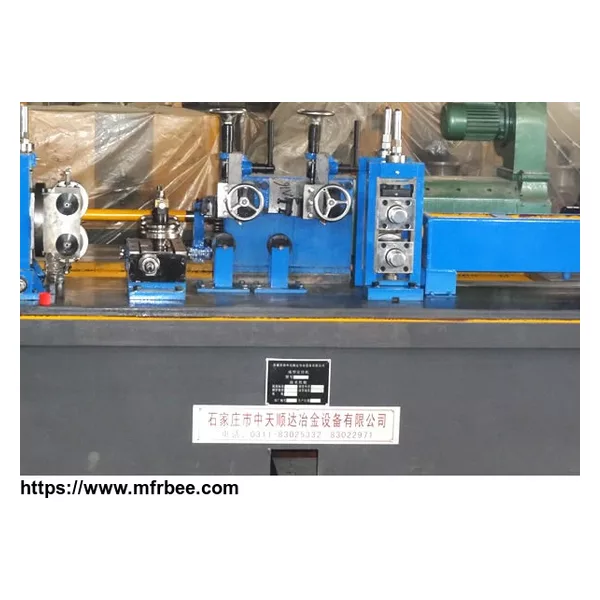

HG32 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of Ф16-50mm in diameter and 0.6-2.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line’s each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.

1. The production process:
Raw material (strip) →feeding→Cutting and Welding →Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → Packing → Storage
2. Adapt materials:
Hot rolled or cold rolled steel strip
Material: Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
3. Processing steel pipe size range:
(1) Processing range: Round pipe Φ16-Φ50mm.
Square&Rectangular pipe 15x15—40x40
(2) Thickness of Round pipe: 0.6-2.5mm
Thickness of Square&Rectangular pipe: 0.6-1.5mm
4. Installed capacity: 315KVA
5. Water consumption: 30m3/h
6. Solid-state high-frequency Welder: 150KW
7. Workshop Request: length, width and height 40-60m X 12m X 5m
8. Forming speed: 80-120m/min
For more details please contact our company immediately,thank you!
