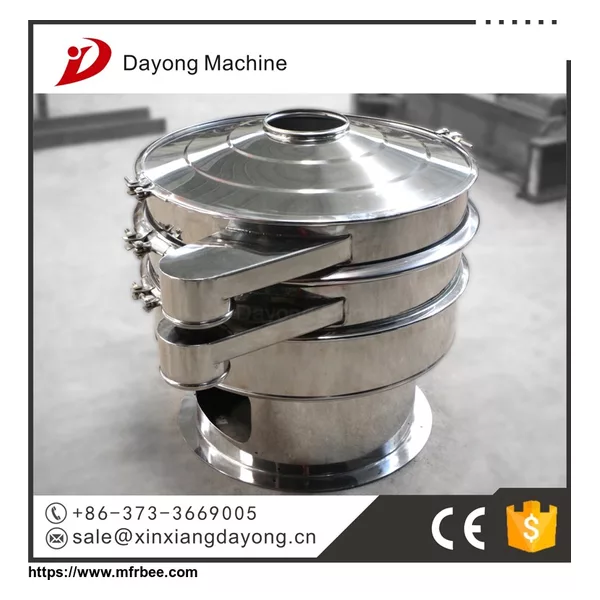

The character and usage
1.High efficiency in screen separation and filtering, fine precision,suitable for all kinds of powders, particles, and liquids.
2.No blockage of sreen nets, the finest degree of screening is 400mu/inch, fast and flexible in change of nets.
3.Good condition in sealant,low noise, free from powder pollution and liquid overflowing.
4.Small in size, light weight, easy to move,the feeding-out direction can be selected freely, it is convenient for automatic operation.
5.Easy in maintenence,it can be used in single layer,or multi layer, and 4 layer in maxinum, the parts contacted the materials are completely made with carbon steel and stainless steel.
Model | Power(kw) | Valid Diameter of screen(mm) | Volume(mm) | Layers |
DY-400-1S
DY-400-2S DY-400-3S |
0.18kw |
320mm |
580*580*560
580*580*660 580*580*760 |
1-5
|
DY-600-1S
DY-600-2S DY-600-3S |
0.55kw |
550mm |
800*800*680
800*800*780 800*800*880 |
1-5 |
DY-800-1S
DY-800-2S DY-800-3S |
0.75 kw |
750mm |
900*900*780
900*900*930 900*900*1080 |
1-5 |
DY-1000-1S
DY-1000-2S DY-1000-3S |
1.5 kw |
950mm |
1160*1160*880
1160*1160*1030 1160*1160*1180 |
1-5 |
DY-1200-1S
DY-1200-2S DY-1200-3S |
1.75 kw |
1150 mm |
1360*1360*980
1360*1360*1160 1360*1360*1360 |
1-5 |
DY-1500-1S
DY-1500-2S DY-1500-3S |
2.2 kw |
1450mm |
1850*1850*1130
1850*1850*1330 1850*1850*1550 |
1-5 |
DY-1800-1S
DY-1800-2S DY-1800-3S |
2.2 kw |
1750mm |
2200*2200*1360
2200*2200*1460 2200*2200*1680 |
1-5 |
you can try screen with to get through more products
