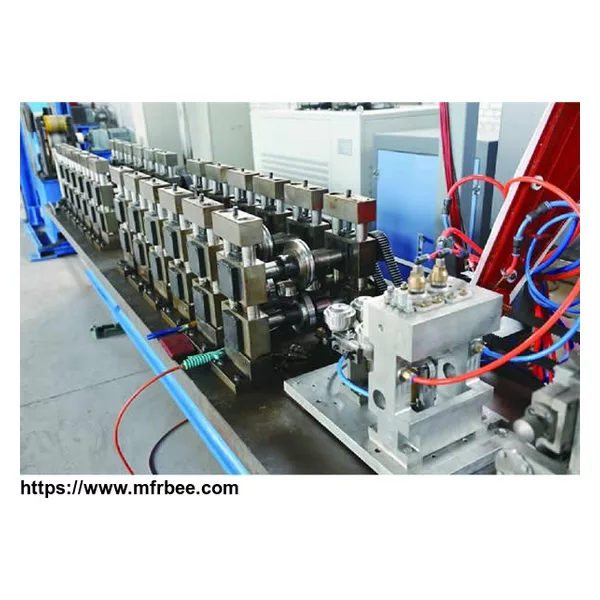

Aluminium Tube Mill Line

Aluminium Tube Mill

Φ8-16×1-3	Φ38×3	Φ76×4	20×20×2/4	50×50×2/5	80×40×3-4
Φ18×2-3	Φ42×3	Φ89×4	25×25×2/3	50×50×4/5	80×80×3-4
Φ20×2-4	Φ45×3	Φ114×4.5	30×30×2/3	50×30×2/5	90×60×4
Φ22×2-5	Φ48×3-4	Φ133×4	40×30×2/4	60×40×3/6	100×50×3/4
Φ25×2-4	Φ51×3	Φ159×5	40×40×2/6	60×60×3/6	100×100×4/5
Φ32×2-4	Φ57×3.5	Φ219×6	40×30×2-6	60×60×5	150×100×5-9-10
Φ34×3-4	Φ60×4	Φ108×4	50×25×2-5	70×30×3-5	160×80×5

1. The production process:
Raw material (strip) →feeding→Cutting and Welding →Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → Packing → Storage
2. Adapt materials:
Hot rolled or cold rolled steel strip
Material: Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
3. Processing steel pipe size range:
(1) Processing range: Round pipe Φ20-Φ32mm.
Square&Rectangular pipe 10x10—25x25
(2) Thickness of Round pipe: 0.5-1.5mm
Thickness of Square&Rectangular pipe: 0.5-1.0mm
4. Installed capacity: 200KVA
5. Water consumption: 20m3/h
6. Solid-state high-frequency Welder: 100KW
7. Workshop Request: length, width and height 30-50m X 12m X 5m
8. Forming speed: 80-120m/min
For more details please contact our company immediately,thank you!
