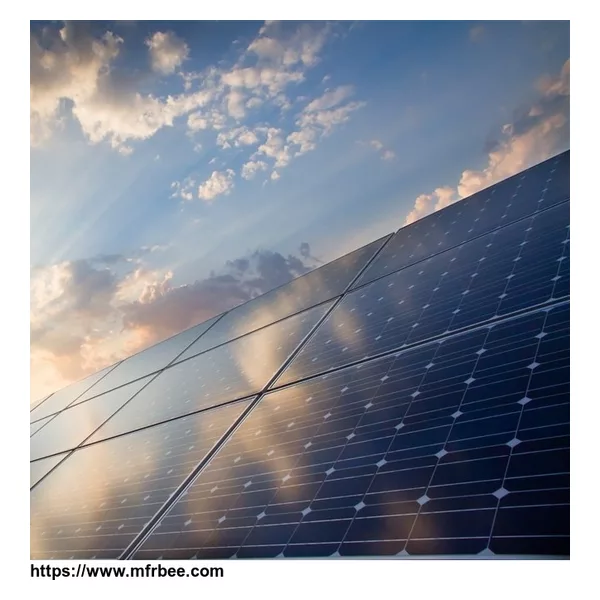

320w mono solar panel

FOB Price
USD $125.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
30pcs each carton
Delivery
7 Days

SWM320M156 SPECIFICATION:

ELECTRICAL DATA @ STC

Peak Power Watts Pmax(WP): 320

Power Output Tolerance Pmax(%):+3

Maximum Power Voltage Vmp(V):37.8

Maximum Power Current IMPP(A):8.47

Open Circuit Voltage Voc(V):46.4

Short Circuit Current Isc(A);8.98

Module Efficiencyηm(%):16.5

Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/㎡。Cell Temperature 25℃)

ELECTRICAL DATA @NOCT

Maximum Power Pmax(Wp): 238

Maximum Power Voltage Voc(V):35.9

Maximum Power Current Impp(A):6.62

Open Circuit Voltage Voc(V):44.1

Short Circuit Current Isc(A):7.15

NOCT: Irradiance at 800W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s

MECHNICAL DATA

Solar Cells: Mono-crystalline 156*156mm(6 in)

Cell Orientation: 72 cells(6*12)

Module Dimensions: 1956*992*40mm(62.2*41.89*1.57 in)

Weight: 22kg(48.5 Ib)

Glass: High transparency solar glass 3.2mm(0.13 in)

Frame: Anodized aluminium alloy

J-Box: IP 65 rated

Cables: Photovoltaic technology cable 4.0mm²(0.0062 in²)

Connector: Original MC4 PLUS

TEMPERATURE RATINGS

Nominal Operating Cell Temperature(NOCT): 45℃(±2℃)

Temperature Coefficient of Pmax: -0.43%/℃

Temperature Coefficient of Voc: -0.32%/℃

Temperature Coefficient of Isc: 0.047%/℃

MAXIMUM RATINGS

Operational Temperature: -40℃~+85℃ 10 Year Product

Maximum System Voltage: 1500V DC(IEC)/ Workmanship Warranty

1000V DC(UL) 25 Year Linear Power

Max Series Fuse Rating: 15A Warranty
