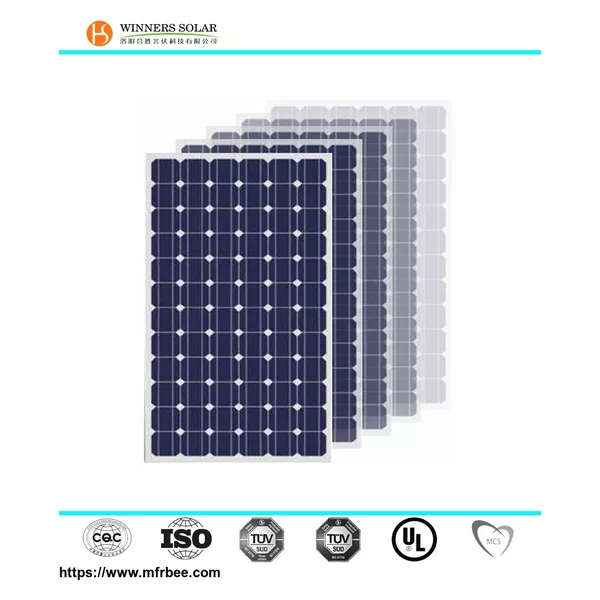

265watt high efficiency poly solar panel with low price

The Advantage of SWM265M156 Solar panels

s Guaranteed power output 0~3%

s Sleek Appearance

Available with black frame

s Stringent Quality Control

s All modules undergoelectrical Performance test,

1000V insulationtest, andelectroluminescence test

s Reliable Performance

Anti-reflective glass coating and advanced cell surface texturing to

better capture direct andindirect light

“Lower temperature coefficient for higher output in hot conditions”.

ELECTRICAL DATA @ STC

Peak Power Watts Pmax(WP):265

Power Output Tolerance Pmax(%):+3

Maximum Power Voltage Vmp(V):31.2

Maximum Power Current IMPP(A):8.50

Open Circuit Voltage Voc(V):38.2

Short Circuit Current Isc(A)；9.19

Module Efficiency ηm(%)：16.3

Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/㎡。Cell Temperature 25℃)

ELECTRICAL DATA @NOCT

Maximum Power Pmax(Wp): 197

Maximum Power Voltage Voc(V):29.0

Maximum Power Current Impp(A):6.78

Open Circuit Voltage Voc(V):35.4

Short Circuit Current Isc(A):7.39

NOCT: Irradiance at800W/㎡，Ambient Temperature 20℃，Wind Speed 1m/s

MECHNICAL DATA

Solar Cells: Mono-crystalline 156*156mm(6 in)

Cell Orientation: 60 cells(6*10)

Module 1640*992*35mm(64057*39.06*1.38 in)

Dimensions

Weight: 18.5kg(40.79 Ib)

Glass: High transparency solar glass 3.2mm(0.13 in)

Frame: Anodized aluminum alloy

J-Box: IP 65 rated

Cables: Photovoltaic technology cable 4.0mm²(0.0062 in²)

Connector: Original MC4 PLUS

TEMPERATURE RATINGS

Nominal Operating Cell Temperature(NOCT): 45℃（±2℃）

Temperature Coefficient of Pmax: -0.43%/℃

Temperature Coefficient of Voc: -0.32%/℃

Temperature Coefficient of Isc: 0.047%/℃

MAXIMUM RATINGS

Operational Temperature: -40℃~+85℃ 10 Year Product

Maximum System Voltage: 1500V DC(IEC)/ Workmanship Warranty

1000V DC(UL) 25 Year Linear Power

Max Series Fuse Rating: 15A Warranty

PACKAGING CONFIGURATION 20’GP 40’GP 40’HQ

Quantity/Pallet 30 30 30

Pallet Quantity 12 28 28

Total Pcs 360 840 896
