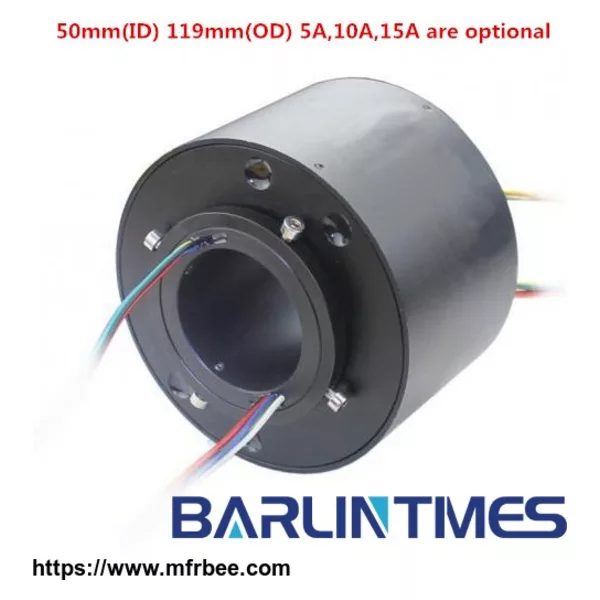

Through Hole Slip Ring with 50mm ID

Minimum Order
1
FOB Price
USD $150.50 / Piece
Place Of Origin
China
Packaging
1 pcs ezch carton
Delivery
15 Days









Features:

1. Modular design & compact design

2. Transmit various analog and digital signal

3. Low wear and long work life time

4. Compatible with data bus protocols

5. 360 degree continuous rotary power transmission or data signal

Option:

1. Current & Voltage

2. Circuits

3. Inner diameter, outer diameter and length

4. Work speed

5. Housing material and color

6. Protection degree

7. Lead wire exit direction

8. Lead wire length

9. Connector type

10. Signal and power transmitted single or together

Application:

1. Radar, antenna, robotics

2. Turn table, rotary sensor

3. Engineering machinery equipment, cable wheel, test machine

4. Packing machine, medical equipment

5. Handling process control equipment

6. Military equipment

7. Wind turbine generator

8. Emergency lighting machine, exhibition/display equipment

THR-050T

Specification
Circuits 1-24 circuits
Work Speed 0-500RPM
Work Temperature -20℃-+60℃
Work Humidity 60%RH or higher
Voltage Rating 380VAC/DC
Current Rating 5A/10A/15A
Dielectric Strength ≥1000VAC@50Hz between each circuit
Insulation Resistance 1000MΩ@500VDC
Electrical Noise 1mΩ Min
Contact Materials Precious metal
Lead Wire Size Teflon® UL
Lead Wire Length Standard 300mm
Housing Materials Aluminum alloy
Torque ≤9.25 gm ( for reference)
Protection IP54 or higher
