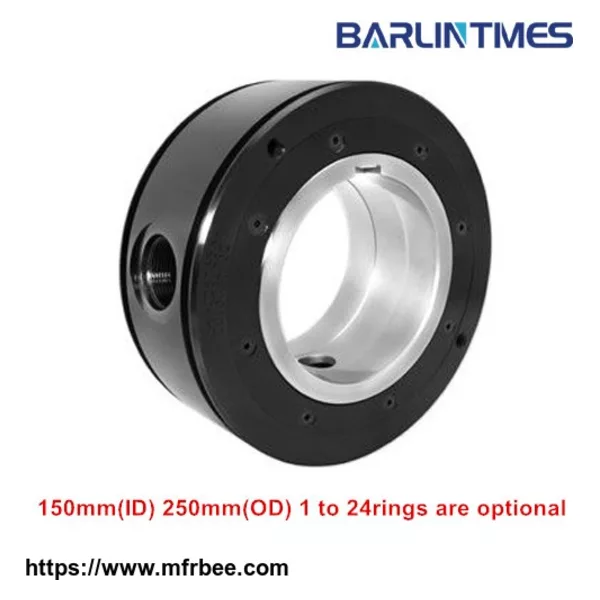

Through Hole Slip Ring with 150mm Inner Diameter
Product Quick Detail
- Minimum Order
- 1
- FOB Price
- USD $170.50 / Piece
- Place Of Origin
- China (Mainland)
- Packaging
- Carton
- Delivery
- 15 Days
Specifications
THR-150T
| Specification | |
| Circuits | 1-24 circuits |
| Work Speed | 0-500RPM |
| Work Temperature | -20℃-+60℃ |
| Work Humidity | 60%RH or higher |
| Voltage Rating | 380VAC/DC |
| Current Rating | 5A/10A/15A |
| Dielectric Strength | ≥1000VAC@50Hz between each circuit |
| Insulation Resistance | 1000MΩ@500VDC |
| Electrical Noise | 1mΩ Min |
| Contact Materials | Precious metal |
| Lead Wire Size | Teflon® UL |
| Lead Wire Length | Standard 300mm |
| Housing Materials | Aluminum alloy |
| Torque | ≤9.25 gm ( for reference） |
| Protection | IP54 or higher |
- Country: China (Mainland)
- Business Type: Manufacturer,Other
- Market:Europe
- Founded Year:2010
- Address:Rm401, Huajian Industry Building, Baogang North Rd, Luohu Dist, Shenzhen 518000, China
- Contact:Cindy Xiong
