Peroxide /Silane XLPE Compounding and Pelletizing
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
PVC Wire & Cable Material Compounding and Pelletizing
- Usage
Parallel twin screw has self-wiping effect, and the screw is modular and in-line design, which is able to be exchanged and combined into optimal configuration for different PVC compounding requirement.
- Main techniacal data
| Model and Specification | SDJ62/150 | SDJ72/180 | SDJ82/190 | SDJ92/200 | ||||
| Twin | Single | Twin | Single | Twin | Single | Twin | Single | |
| Screw diameter (mm) | 62 | 150 | 72 | 180 | 82 | 190 | 92 | 200 |
| Screw revolving speed (r/min) | 400 | 65 | 400 | 65 | 400 | 65 | 400 | 65 |
| Screw (L/D) | 36 | 7 | 36 | 7 | 36 | 7 | 36 | 7 |
| Driving power (kw) | 55 | 45 | 90 | 55 | 185 | 75 | 250 | 90 |
| Consult output (kg/h) | 300~500 | 600~800 | 1000~1500 | 1500~2500 |
(CHENGMENG)

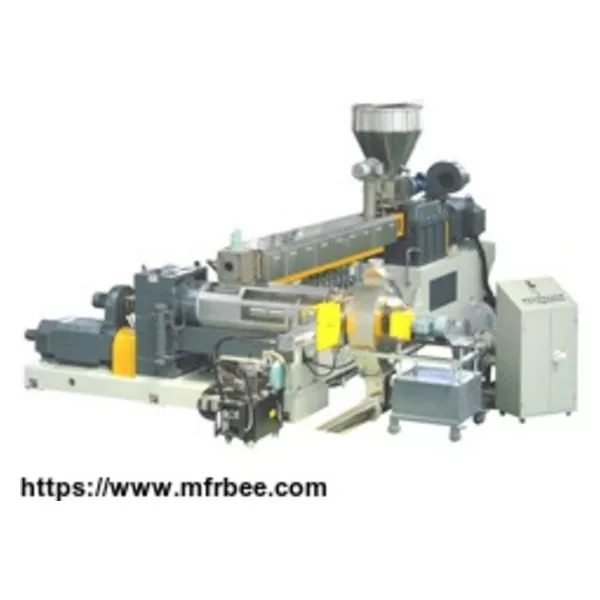

SDJ Two-Stage(Twin/Single screw) Extruder Unit (two-time pelletizing)
- Main techniacal data
|
Technical Model data |
Screw L/D | Screw diameter (mm) | Screw revolving speed (r/min) | Motor power (kw) | Output (kg/h) (for reference) |
| SDJ62/150 | 36:1 | 62 | 400 | 75 | 150~250 |
| 7:1 | 150 | 65 | 45 | ||
| SDJ72A/180 | 36:1 | 72 | 400 | 132~160 | 200~350 |
| 7:1 | 180 | 65 | 55 | ||
| SDJ82A/190 | 36:1 | 82 | 400 | 185~250 | 400~600 |
| 7:1 | 190 | 65 | 75 |
(CHENGMENG)
Silane XLPE Compounding and Pelletizing
- Type
SHJ Twin Screw Extruder Unit (With Lose-in-Weight Feeder)
- Main technical data
|
Technical Model data |
Screw L/D |
Screw diameter (mm) |
Screw revolving speed (r/min) |
Motor power (kw) |
Output (kg/h) (for reference) |
| SHJ-92 | 44:1 | 92 | 300~400 | 315~350 | 400~600 |
| SHJ-112 | 44:1 | 112 | 300~400 | 450~550 | 600~800 |
| SHJ-132 | 44:1 | 132 | 300~400 | 600~750 | 700~1000 |
(CHENGMENG)
Peroxide XLPE Compounding and Pelletizing
- Type
SHJ Twin-Stage ( Twin/Single Screw) Extruder Unit
- Main technical data
|
Technical Model data |
Screw L/D | Screw diameter (mm) | Screw revolving speed (r/min) | Motor power (kw) | Output (kg/h) (for reference) |
| SDJ72/180 | 32:1 | 72 | 400 | 132~160 | 300~400 |
| 7:1 | 180 | 65 | 55 | ||
| SDJ82A/190 | 32:1 | 82 | 400 | 185~250 | 450~650 |
| 7:1 | 190 | 65 | 75 | ||
| SDJ92/200 | 32:1 | 92 | 400 | 280~350 | 600~800 |
| 7:1 | 200 | 65 | 90 |
