vibrating screen cloth

Place Of Origin
china
Packaging
Wooden packing. the packing size should be according to the actual size
Delivery
15 Days

Company profile
Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design , development , manufacture.At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.We insist on focusing on the leading advanced technology of screening and filtering.and are good at the design and production of vibrating screen machines.
Application

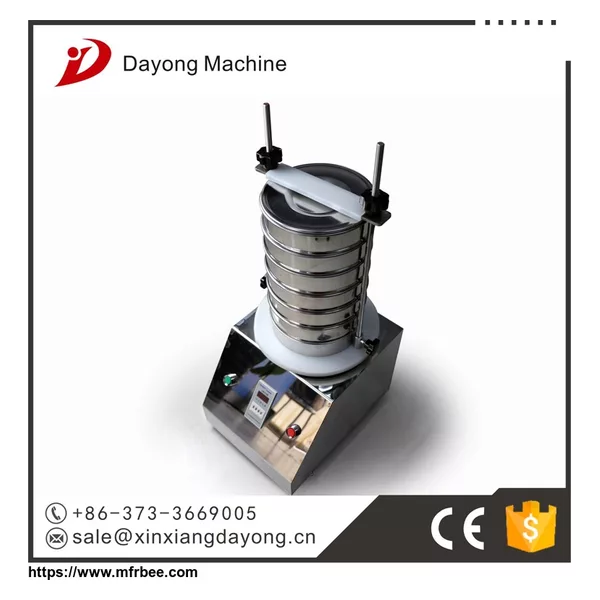

The analytical test classifier is the equipment which is used for the detection of granularity and the site screening in laboratory and can make dry or wet screening and the screening of high efficiency on the samplesication
Technical parameters
DY-200
Items Name unit Data
One Layers Layer 1~8
Two Diameter Mm Φ200Φ100Φ75
Three Granularity Mm 0.038-3
Four Noise DB ≤50
Five Feeding
capacity
(once) G ≤200
Six Amplitude Mm ≤5
Seven Voltage V 220
Eight Speed R/min 1420
Nine Power Kw 0.125
Ten Overall
dimension Mm 360×300×736
Eleven Weight Kg 25
If you are interested in our products,pls email or call us.
Welcome to visit our factory and look forward to your cooperation !
