LY-08 Two-way FullRange LoudSpeaker Systems

Description:

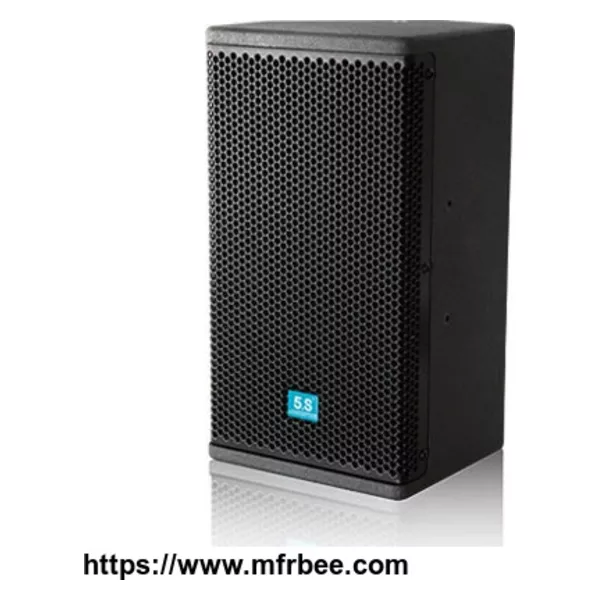

LY-08 of 5.S brand is a two-way multifunction full range loudspeaker system, The design of LY-08 is trapezoidal front-oriented, equipped with circular fiber glass steel horn that can be adjusted with a range of 90°*60°. It is embedded in a 8" ultra-low distortion unit and 1" horn compression driver unit. As a two-way system, LY-08can be driven directly and also can match two channel power amplifier systems to achieve the ultimate high output. LY-08 of 5.S brand can provide to KTV, night clubs, clubs and corporate activities profession sound solutions.

KeyWords:

5S Pro Audio,Pro Loudspeaker,5S Audio,Professional Audio,Professional Sound,Sound equipment,Stage sound ,Theatre sound systems,concert hall sound systems,Karaoke sound systems,discotheques sound systems,Cinema sound,Installed sound,Tour sound,Live Portable sound.

Applications：

Conference Room, Churches, Showrooms

KTV,Bars, Nightclubs, Clubs

Theatre fills

Small size of language sound reinforcement system

Mobile or fixed installation audio and video system

Specifications:

Type: Two-way FullRange Multi Using LoudSpeaker Systems

Frequency Response: 56Hz-20kHz(+/-3dB)

Rated Power: 250W(AES)

Peak Power: 1000W

Sensitivity: 94dB

Max. System Output： 123dB（Peak）

Nominal Directivity: 90° X 60°

Crossover Frequency： 1.5kHz(Built In Crossover)

Impedance： 8Ω

Connectors： 2*NeutrikTM TM 1+1-

Rigging： 8*M8

Product Unit

LF: 8" cone which is imported from Italy;2" (50mm) voice coil.Rated power: 220W (AES)

HF: 1" horn which is using Italy imported membrane group drive unit;1.35" (34mm) voice coil. Rated power: 30W (AES)
