LY-12 Two-way FullRange LoudSpeaker Systems

Minimum Order: 10

Place Of Origin: Xiamen, China

Packaging: 1pcs each PVC box

Delivery: 20 Days

Description:

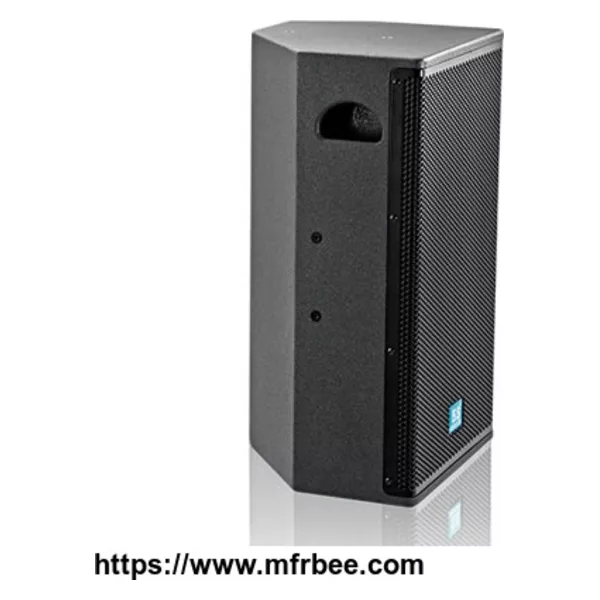

LY-12 of 5.S brand is a two-way multifunction full range loudspeaker system, The design of LY-12 is trapezoidal front-oriented, equipped with circular fiber glass steel horn that can be adjusted with a range of 90°*60°. It is embedded in a 12" ultra-low distortion unit and 1.5" horn compression driver unit. As a two-way system, LY-12 can be driven directly and also can match two channel power amplifier systems to achieve the ultimate high output. LY-12 of 5.S brand can provide to KTV, night clubs, clubs and corporate activities profession sound solutions.

Applications：

Conference Room, Churches, Showrooms

KTV,Bars, Nightclubs, Clubs

Theatre fills

Small size of language sound reinforcement system

Mobile or fixed installation audio and video system

Specifications:

Type: Two-way FullRange Multi Using LoudSpeaker Systems

Frequency Response: 45Hz-20kHz

Rated Power: 500W(AES)

Peak Power: 2000W

Sensitivity: 96dB

Max. System Output 129dB（Peak）

Nominal Directivity: 90° X 60°

Crossover Frequency： 1.5kHz(Built In Crossover)

Impedance： 8Ω

Connectors： 2*NeutrikTM 1+,1-

Rigging： 8*M8

Product Unit

LF: 12" cone which is imported from Italy;3"(75mm) voice coil.Rated power: 430W (AES)

HF： 1.5" horn which is using Italy imported membrane group drive unit;3"(75mm) voice coil. Rated power: 70W (AES)

Enclosure

Colour： Polyurea Paint /Water-based paint points (All RAL Colors)

Material： 15mm Russian Birch Plywood

Dimensions(W*H*D)： 367mm*590mm*385mm

Weight: 25.7Kg

Country: China (Mainland)
Business Type: Trading Company
Market:
Founded Year:2016
Address:5unit of 8th Floor,Building D of Xiamen International Shipping Center,No.97 xiangyu road,
Contact:Sarah
