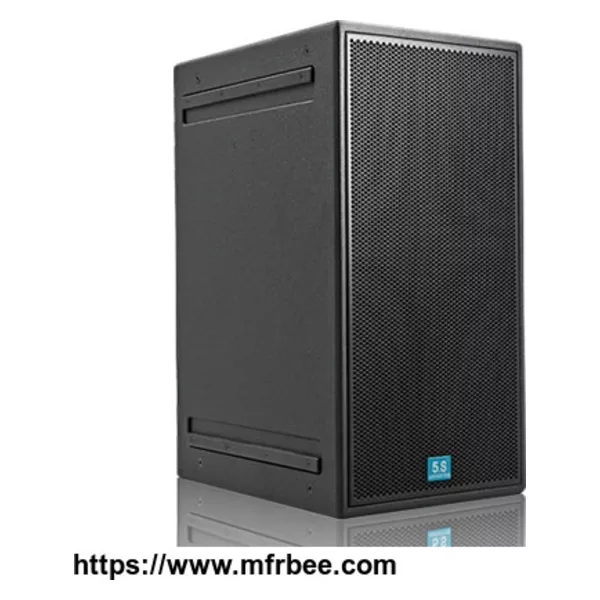

LY-D15 Fullrange Matrix Loudspeaker

LY-D15 Fullrange Matrix Loudspeaker

Description:

LY-D15 of 5.S brand is a two-way multifunction full range loudspeaker system, The design of LY-D15 is equipped with flat square steel fiber horn that can be adjusted which with a coverage of 90°*15°. It is embedded in 15 "75 mm voice coil, power is extremely low distortion of the bass unit and a 1.5” throat ,75 mm voice coil compression driver unit.The LF section adopts Italian B&C imported products,the HF section is using French PHL imported products and have flexibility to use professional hanging ornaments.

As a two-way system,LY-D15 can be driven directly and also can match two channel power amplifier systems to achieve the ultimate high output.LY-D15 of 5.S brand is applicable to the HI room, bar, slow rock and he hall, bring a strong solution to the audio system.

Applications：

Large stadiums, arenas, all kinds of performances

Entertainment venues, nightclubs, bars

Theme park and concert hall

Mobile or fixed installation

As subwoofer of other audio system

Specifications:

Type: LF/1*15"+HF/1*1.5"

Frequency Response: LF/50Hz-4000Hz HF/500Hz-20000Hz

Rated Power: LF/ 600W(AES)/PCS HF/ 70W(AES)/PCS

Sensitivity: LF/ 97dB(1W&1M) HF/ 109dB(1W&1M)

Max. System Output 139dB（Peak）

Nominal Directivity: Down 20°*Up 40°

Crossover Frequency： 1.8kHz(Built In Crossover)

Impedance： 8Ω/Box

Connectors： 2*Neutrik NL4MP LF/2+2-;HF/1+1-

Box connecting components： Aluminum LY-D15

Enclosure

Colour： Polyurea Paint /Water-based paint points (All RAL Colors)

Material： 15mm Russian Birch Plywood

Dimensions(W*H*D)： 440mm*810mm*640mm

Weight: 44.5Kg
