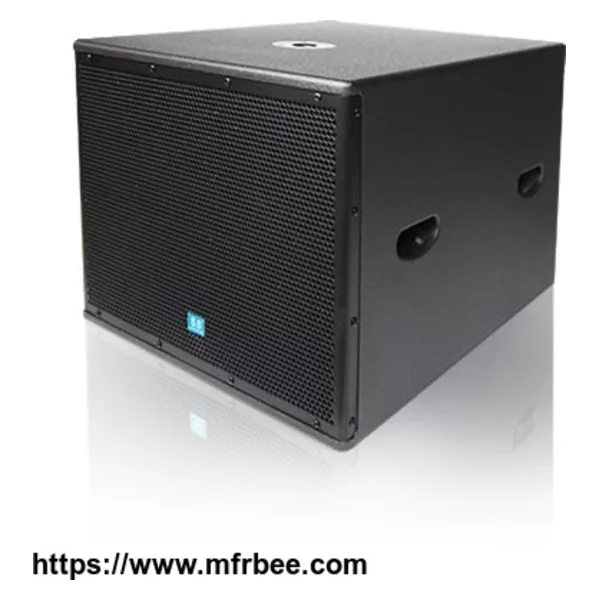

SW-112B FullRange & Bass Loudspeaker Systems

SW-112B FullRange & Bass Loudspeaker Systems

Description:

SW-112B of 5.S brand is a compact high sound pressure output and ultra-low frequency enclosure embedded in a 12” high-power low distortion unit,The bass horn is designed to bring a close and precise bass response to the wooden box,is the most ideal collocation with LY-08. This product has been equiped with most advanced unit long stroke and great magnetic force that bring a high magnetic flux as a way to increase efficiemcy.

Applications：

Large stadiums, arenas, all kinds of performances

Entertainment venues, nightclubs, bars

Theme park and concert hall

Mobile or fixed installation

As subwoofer of other audio system

Specifications:

Type: 12"Bass LoudSpeaker Systems

Frequency Response: 38Hz-300Hz

Rated Power: 400W(AES)

Peak Power: 1600W

Sensitivity: 96dB

Max. System Output 129dB（Peak）

Nominal Directivity: 90° X 60°

Crossover Frequency： External crossover

Impedance： 8Ω

Connectors： 2*Neutrik TM 2+2-

Rigging： 8*M8

Product Unit

LF:

12" cone which is imported from Italy，large magnetic circuit design

3.5" (88mm) voice coil，Rated power:400W(AES)

HF： -

Enclosure

Colour： Polyurea Paint /Water-based paint points (All RAL Colors)

Material： 15mm Russian Birch Plywood

Dimensions(W*H*D)： 395mm*460mm*700mm(W*H*D)

Weight: 22.8Kg
