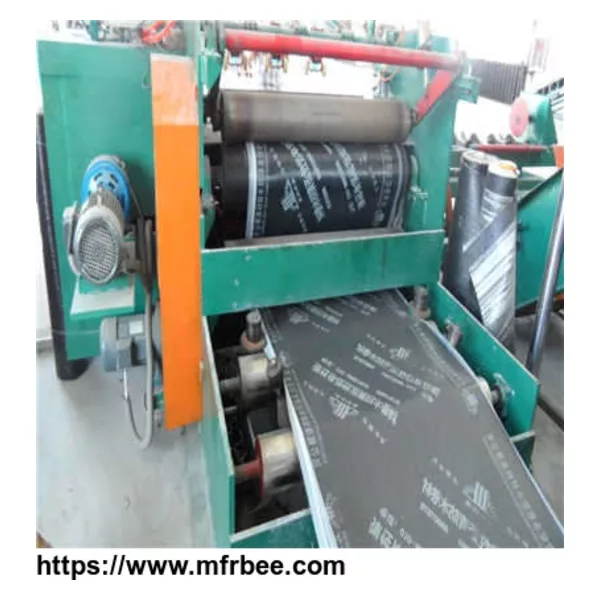

Producing Waterproof Material Equipment for Sale

Model HT-8000,HT-6000
Place of Origin Hebei, China (Mainland)
Product name SBS/APP bitumen waterproof membrane
Voltage 380v/50HZ
Warranty 12 Months
Length 50-60m
Power 220KW
Capacity 3000-15000square meter/day
Capacity 3million-10million square meter/year
Speed 5-50m/min
Main Workshop 60m*12m*8m
Automation degree Semi-automatic and Full-automatic
Modified Materials SBS/APP
Stander EN ISO 12100-2010
Compressed air 0.7Mpa,0.6 M3/min
Surface material PE film, Aluminum foil,Sand, Schist flake,etc
Fuel Coal,natural gas,diesel oil,etc
Labor 5-10
Control system PLC
Application: roof,subway,basement,wall,pool,cold storage, airportrunway, viaduct,etc
Supply Ability 1set per month
Price USD100,000-800,000
Min. Order 1set
Packing:every part is carefully packed to avoid damaging during transportation.
Delivery 90 days upon receiving order
Modified bitumen waterproofing membrane is widely used in industrial and civil buildings, such as roof, basement, toilet, bridge, park, swimming pool, tunnel for waterproof and moisturepr of. Bitumen is a hydrocarbon and is created naturally from crude oil. It is a useful carbon store and does not generate greenhouse gases. The membrane is therefore a sustainable way of storing carbon on the Earth's surface.
Working principle
The whole working principle can be divided into 3 steps.
1.To mix the bitumen,rubber powder , talcum powder , enginee oil and some other raw materials via mixing tanks(the mixing tank should be kept warm by conduction oil).The finished mixtures can be called bituminous mixtures .
2.The bituminous mixtures will be delivered into coating pools.Then the base material(reinforcement ) will be coated with the bituminous mixtures.At last ,the coated reinforcement will be covered by PE film or sand or other materials.At that time ,the bitumen membrane preliminary forming.
3.The finished products will be cooled by water and air,then be rolled by auto winder.
