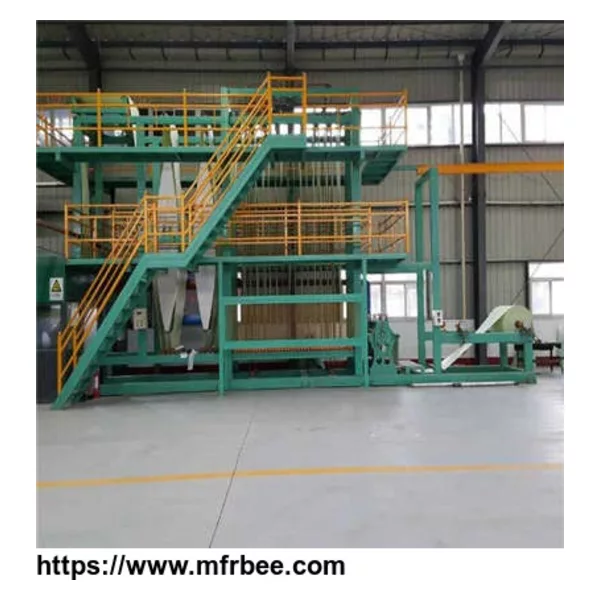

Modified Bitumen Waterproofing Membrane Production
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Model HT-8000,HT-6000
Place of Origin Hebei, China (Mainland)
Product name SBS/APP bitumen waterproof membrane
Voltage 380v/50HZ
Warranty 12 Months
Length 50-60m
Power 220KW
Capacity 3000-15000square meter/day
Capacity 3million-10million square meter/year
Speed 5-50m/min
Main Workshop 60m*12m*8m
Automation degree Semi-automatic and Full-automatic
Modified Materials SBS/APP
Stander EN ISO 12100-2010
Compressed air 0.7Mpa,0.6 M3/min
Surface material PE film, Aluminum foil,Sand, Schist flake,etc
Fuel Coal,natural gas,diesel oil,etc
Labor 5-10
Control system PLC
Application: roof,subway,basement,wall,pool,cold storage, airportrunway, viaduct,etc
Supply Ability 1set per month
Price USD100,000-800,000
Min. Order 1set
Packing:every part is carefully packed to avoid damaging during transportation.
Delivery 90 days upon receiving order
| Capacity(M²/year)(Reference) | 2 million | 3 million | 5 million | 8 million | 10 million |
| Speed(M/min)(Reference) | 0-12 | 0-18 | 0-25 | 0-30 | 0-35 |
| Linear velocity | 5-50M/min (adjustable) | ||||
| Power source | 220KW,380V,50HZ,3P | ||||
| Labor Required(Reference) | 5-7 | 6-9 | 9-11 | 9-11 | 9-11 |
| Water Consumption | 0.5T/day,recycling | ||||
|
Main Workshop (L*W*H) /m |
60x (12-15)x(6-8) | 60x (12-15)x(6-8) | 60x (12-15)x(6-8) | 60x (12-15)x(6-8) | 90x (12-15)x(6-8) |
| Automation degree | Semi-automatic and Full-automatic | ||||
| Fuel | Coal, natural gas, diesel oil, etc | ||||
| Length/Roll | 10m or as customized | ||||
| Width/Roll | 1m-1.5m | ||||
| Thickness/Roll | 1.5 mm-5mm | ||||
| Reinforcement | Polyester, Fiberglass mat, Compound Mat | ||||
| Surface material | PE film, Aluminum foil,Sand, Schist flake,etc | ||||
| Modified Materials | SBS/APP | ||||
| Reinforcement(Base material) |
Polyester felt:140-300g/M², Fiberglass felt:150-250 g/M², Composite reinforcement(5×5-8×8) |
||||
| Diesel consumption | 60Kg/h, Thermal efficiency≥73%, Oil burning boiler which is of 500,000K to heat conduction oil. | ||||
| Compressed air | 0.7Mpa,0.6m³/min | ||||
| Air compressor motor |
15KW |
