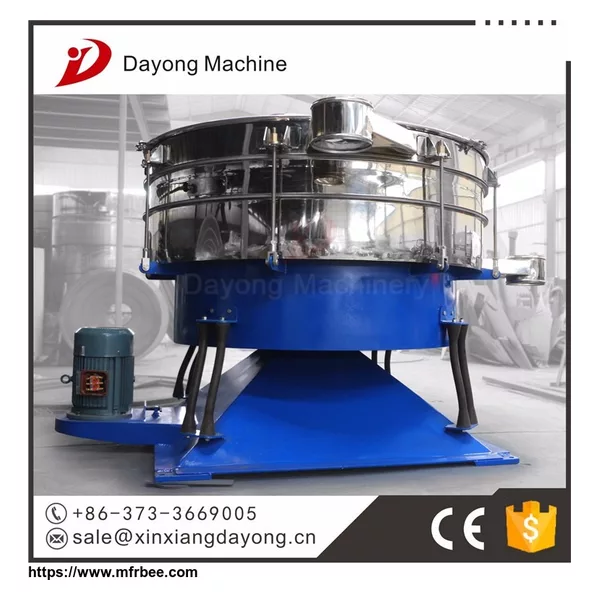

swinging vibrating screen

Place Of Origin
china
Packaging
Wooden packing. the packing size should be according to the actual size
Delivery
15 Days
Application
Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power.
Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
Metal, metallurgy mining industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyse copper powder, lithium battery materials, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate, quartz. Social pollution disposed; disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.
Features and Fuctions
1.Patented manual deck lifters for easy screen change
2.Individually adjustable retention time for any product and capacity
3.Low acceleration, long service life of all parts, no product degradation
4.Tough modular design, no dead corners, low part weights
5.Screens down to 20μm
6.No particle destruction in sensitive products
Work principle
The vibrating sieve drives the Vibrating Exciter to produce the vibrating power. The vibrating power throws the materials up and makes the materials move forward in line. It cycles and makes materials sieve. The materials are fed into the input month of vibrating screen, and after screening, users can get different sizes of products, while the unqualified materials on the top and the bottom sieves will be discharged from the their output months. It is used in the production line, can be operate automatically, and it has advantages of low consumption, good efficiency, simple structure, and can not produce dust by sealed structure.
Technical parameters
Model Diameter(mm) Screening surface (m2) Layer Power
DYB-600 600 0.292 1~5 0.25

Model Diameter(mm) Screening surface (m2) Layer Power
DYB-1000 1000 0.785 1~5 1.5

Model Diameter(mm) Screening surface (m2) Layer Power
DYB-1200 1200 1.13 1~5 2.2

Model Diameter(mm) Screening surface (m2) Layer Power
DYB-1600 1600 1.83 1~5 2.2

Model Diameter(mm) Screening surface (m2) Layer Power
DYB-2000 2000 2.63 1~5 4

Model Diameter(mm) Screening surface (m2) Layer Power
DYB-2400 2400 4.52 1~5 5.5

Model Diameter(mm) Screening surface (m2) Layer Power
DYB-2600 2600 5.31 1~5 5.5

you can try screen with    to get through more products
