Application
1. Chemical: Resin powder, palette, washing powder, paint, soda and citric acid, etc.
2. Abrasive material and ceramic industry: alumina, quartz, welding rod powder, aluminum, alloy powder, slurry, and spray soil grain etc.
3. Food industry: Sugar, salt, Alkali, monosodium glutamate, milk powder, soybean milk,yeast, juice, soy sauce, vinegar etc.
4. Paper Making Industries: Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5. Metallurgy and mining: Titanium oxide, zinc oxide, electromagnetism materials, metal materials, welding rod materials, etc
Features and Fuctions
1.Customize the screen as you required
2.Grading and screening according to the granule size
3.Screening accuracy can be enhanced to 70%, the maximum processing capacity increase is 10 times
4.Separation of solid particles into precise sized fractions
5.Low consumption and noise. Environmental protecting and energy conservation
6.Vibrating screen can separate very fineness powder

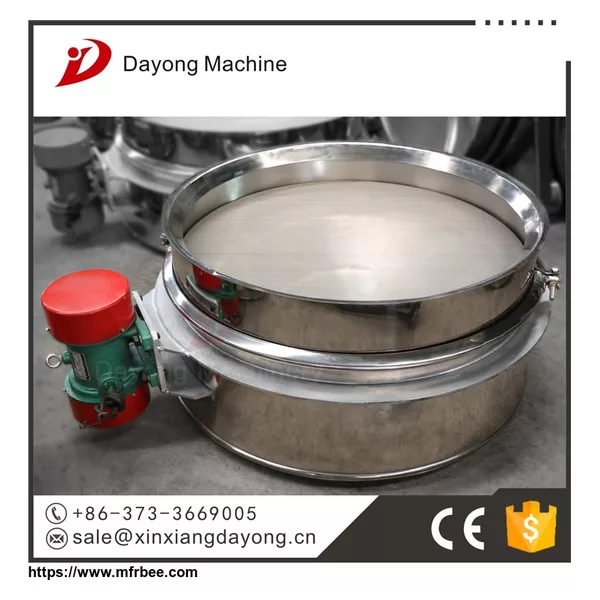

Work principle
The basic principles of
vibrating screen is installed under the hammer motor shaft (unbalanced hammer),
let the motor rotary motion into horizontal, vertical, inclined three per exercise, then this movement passes to the screen surface. Adjusting the upper and lower ends of heavy hammer of the phase
angle, it can change the material in the sieve surface trajectory.
Technical parameters
Model Inlet diameter(mm) Mesh Diameter Effective Area Power
DYS-1200 300 5~30 0.9331 1.5
Model Inlet diameter(mm) Mesh Diameter Effective Area Power
DYS-1500 300 5~30 1.5175 2.5
Model Inlet diameter(mm) Mesh Diameter Effective Area Power
DYS-1800 380 5~30 2.2432 2.5
Model Inlet diameter(mm) Mesh Diameter Effective Area Power
DYS-2000 400 5~30 3 2.5
Model Inlet diameter(mm) Mesh Diameter Effective Area Power
DYS-2500 400 5~30 4.5 4
Model Inlet diameter(mm) Mesh Diameter Effective Area Power
DYS-2800 400 5~30 5.5 6
