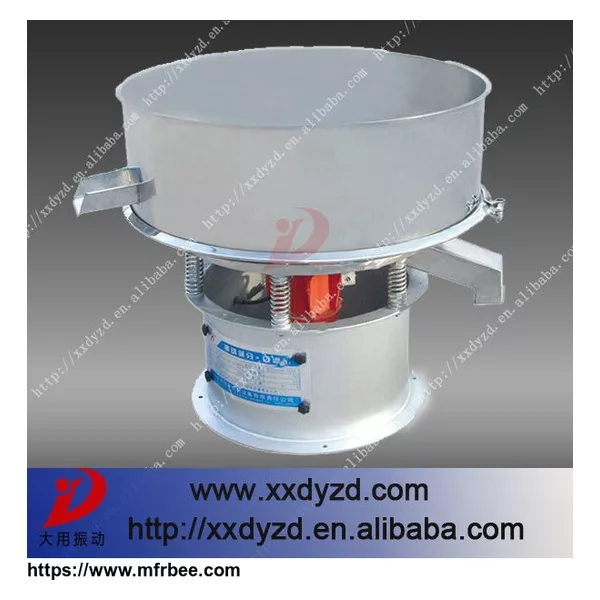

liquid vibrating screen
Product Quick Detail
- Place Of Origin
- china
- Packaging
- Wooden packing. the packing size should be according to the actual size
- Delivery
- 15 Days
Specifications
Application
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
2.The machine has dual purpose which is designed for separation and filtering
3.Advanced power generator, higher efficiency
4.Extremely attractive design and completely portable (optional casters available)
5.Low noise, low energy consumption
6.Be applied to filter the liquid of ceramic,pigment
7.Truly a multi-purpose unit and can quick separating liquid
Work principle
vibrating sieve uses upright motor as the source of vibration, equipped eccentricity hammer on the both sides of motor, changed circumrotate to level, upright anticline movement, then pass these three movements to the surface of the screen. Adjust the phase angle on the both sides of the top and bottom changing the movement orbits in the surface screen.
Technical parameters
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-400-1S 0.18 320mm 580×580×660 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-600-1S 0.55 550 mm 800×800×780 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-800-1S 0.75 750mm 900×900×930 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-1000-1S 1.5 950mm 1160×1160×1030 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-1200-1S 1.75 1150mm 1360×1360×1160 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-1500-1S 2.2 1450mm 1850×1850×1330 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-1800-1S 2.2 1750mm 2200×2200×1460 1
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
Features and Functions
1.Processing: Solid and liquid separation
2.The machine has dual purpose which is designed for separation and filtering
3.Advanced power generator, higher efficiency
4.Extremely attractive design and completely portable (optional casters available)
5.Low noise, low energy consumption
6.Be applied to filter the liquid of ceramic,pigment
7.Truly a multi-purpose unit and can quick separating liquid
Work principle
vibrating sieve uses upright motor as the source of vibration, equipped eccentricity hammer on the both sides of motor, changed circumrotate to level, upright anticline movement, then pass these three movements to the surface of the screen. Adjust the phase angle on the both sides of the top and bottom changing the movement orbits in the surface screen.
Technical parameters
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-400-1S 0.18 320mm 580×580×660 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-600-1S 0.55 550 mm 800×800×780 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-800-1S 0.75 750mm 900×900×930 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-1000-1S 1.5 950mm 1160×1160×1030 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-1200-1S 1.75 1150mm 1360×1360×1160 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-1500-1S 2.2 1450mm 1850×1850×1330 1
Model Power(kw) Effective diameter for sieve surface Packing size layer
DYJ-1800-1S 2.2 1750mm 2200×2200×1460 1
