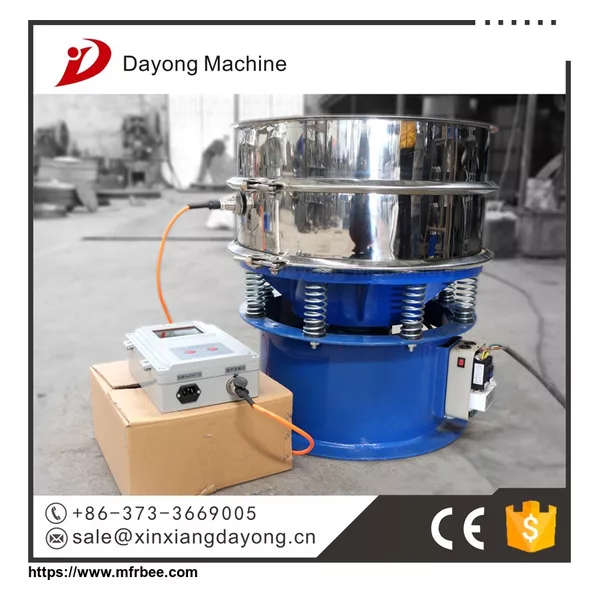

ulstrasonic vibrating screen

Usasge:
The product is applicable to any powder, granule, liquid screening and filtering of the industry. DYC series rotary vibration screen is widely used in chemical industry, medicine powder, liquid, paint, pigments, cosmetics, oil, resin, ceramic slurry, clay slurry, lime, refractory powder at the end, magnetic powder, polishing powder, fruit juice, beverage, sugar, salt, MSG, spices, milk powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate, help solvents, fire extinguishing agents, as well as the environmental protection industry wastewater, wastewater treatment process of screening, filtering.
Features and Functions
1.Disassemble the adhesion objects and reduce the objects on the sieve.
2.Reliable operation, long life expectancy.
3.Low electricity consumption and low noise.
4.Simple structure, convenient installation and light weight;
5. Can be used as the corollary equipment of stone crusher
Work principle
An ultrasonic energy converter added to the common screening machine can produce the ultrasonic frequency to make the screen vibrate continuously based on the low frequency vibration caused by the electric motor. Thus the oversize particles are forced to upspring and the adsorptive materials are broken up, at the same time, the ultrasonic vibration can be conducted throughout the whole screen net by the net wire to prevent the mesh from being plugged to realize a better screening.
Technical parameters
Model Power Sieving diameter Effective area (m2) Volume (mm)
DYC400-1S 0.18 320mm 0.0804 580*580*560

Model Power Sieving diameter Effective area (m2) Volume (mm)
DYC600-1S 0.55 550mm 0.2124 800*800*680

Model Power Sieving diameter Effective area (m2) Volume (mm)
DYC800-1S 0.75 750mm 0.4072 900*900*780

Model Power Sieving diameter Effective area (m2) Volume (mm)
DYC1000-1S 1.5 950mm 0.6221 1160*1160*880

Model Power Sieving diameter Effective area (m2) Volume (mm)
DYC1200-1S 1.75 1150mm 0.9331 1360*1360*980
