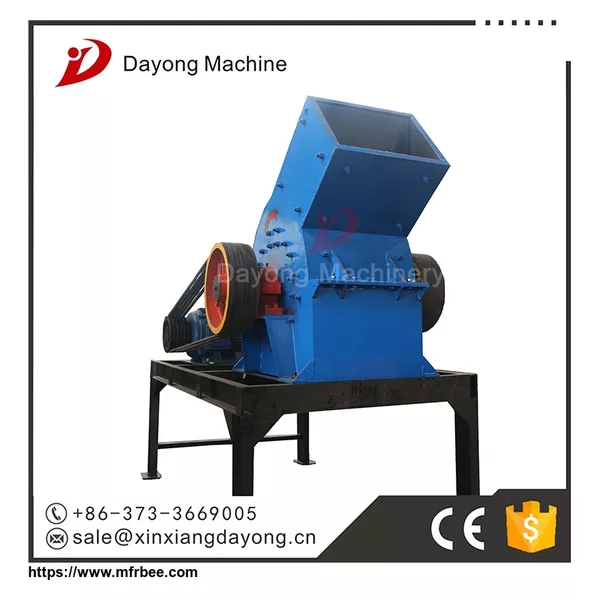

hammer crusher

Advantages of hammer crusher:
1: The crusher have low price,simple structure, reliable operation and convenient adjustment of discharging opening.
2: Small cubic measurement , large reduction ration , low energy consumption .
3: Uniform discharge particle-size , high consumption of wearable parts , and large noise .
4: Widely used in nonmetal mines and scarcely in metal mines.
5: Best after-sales service
Working principle of hammer crusher:
The motor drives the rotor rotate the hammer crusher with high speed through the belt, and on the rotor there are a series of hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size. This machine can be adjusted according to user space grate section, change the particle size, to meet the different needs of different users.
Application filed of hammer crusher:
Impact hammer crusher can be applied for coal, coal gangue, coal cinder, lime, coke and other materials broken.
Especially suitable for pulverized coal boiler, industrial boilers, boiler, such as circulating fluidized bed boiler.
Widely used in thermal power, chemical, coal, metallurgy, building materials and other industries.
Technical parameters
Model Rotor diameter (active length) (mm) Max feeding size (mm) Discharge size (mm) Quantity (t/h) Motor power (kw) Overall size (L×W×H) (mm)
PC-0503 Φ500×300 100 <15 4~6 11 914×964×955
PC-0404 Φ400×400 100 <15 2.5~5 7.5 1147×1084×1201
PC-0604 Φ600×400 100 <15 12~15 22 1066×1164×1141
PC-0606 Φ600×600 100 <15 15~20 30 1147×1307×1201
PC-0806 Φ800×600 100 <15 18~24 30 1495×1584×102
