Ladder butt splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Fit for: solid and tubular steel. 1-1/2" × 3/8', 2" × 3/8".
• Component: splice plates, split lock washers, bolts and nuts.
• Application: connect two sections of runway end-to-end.

Heavy duty butt splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Component: splice plates for 1-1/2" stringers, bolts and nuts, 3/8" split lock washers.
• Application: splice two length of cable ladder together.

Adjustable junction splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Component: adjustable corner plates, bots and nuts, lock washers.
• Application: suit for any angle of horizontal junction to wire the cables which needs large radius bends or route around existing cables.

90° junction splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Fit for: all types of 1-1/2" × 3/8" or 2" × 3/8" cable ladder.
• Component: corner clamp plates, trimmed head bolts and nuts, split lock washers.
• Applications: create a 90° junction splice.

Heavy duty 90°junction splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Component: splice angle, hexagonal cap bolts and nuts, split lock washers.
• Applications: fit for vertical runs and meet seismic requirements.

90° runway splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Component: 90° outside clamps, inside edge clamps, trimmed round head and square neck bolts, hexagonal nuts and lock washers.
• Application: connect the cable ladder at a 90°angle.

45° runway splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Component: 45° outside clamps, inside edge clamps, trimmed round head, square neck bolts, hexagonal nuts and lock washers.
• Applications: designed to connect the cable ladder in 45° angle.

Butt swivel - splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Component: bracket end, round head & square neck bolts and nuts, split lock washers.
• Applications: connect the horizontal neighbor cable ladder into any angles.

Junction swivel - splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Component: bracket end, bracket supports & plate clamps, round head square neck bolts and nuts, split lock washes.
• Applications: connect the perpendicular neighbor cable ladder into any angles.

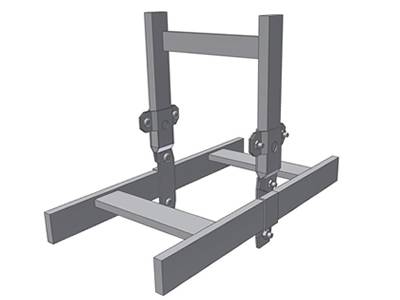

Vertical swivel - splice kit

• Material: pre-galvanized steel, hot dipped galvanized steel, powder coated steel, stainless steel.
• Component: bracket end, bracket supports & plate clamps, round head square neck bolts and nuts, split lock washes.
• Applications: connect the perpendicular neighbor cable ladder into any angles.
