Heavy Duty Fiberglass Grating

Heavy Duty Fiberglass Grating - Perfect for Heavy Loads

Heavy duty fiberglass grating is engineered to carry higher loads that traditional fiberglass grating products are unable to support. It is available in both molded and pultruded grating systems.

Capitalizing on most of the traditional benefits of fiberglass grating products, heavy duty fiberglass grating is specifically designed for applications where heavy loads (such as fork truck traffic) at very long spans are required in corrosive environments. This highly engineered product is usually used to replace heavy steel gratings which is prone to bending and breaking under heavy loads.

One piece of heavy duty fiberglass grating is displayed.

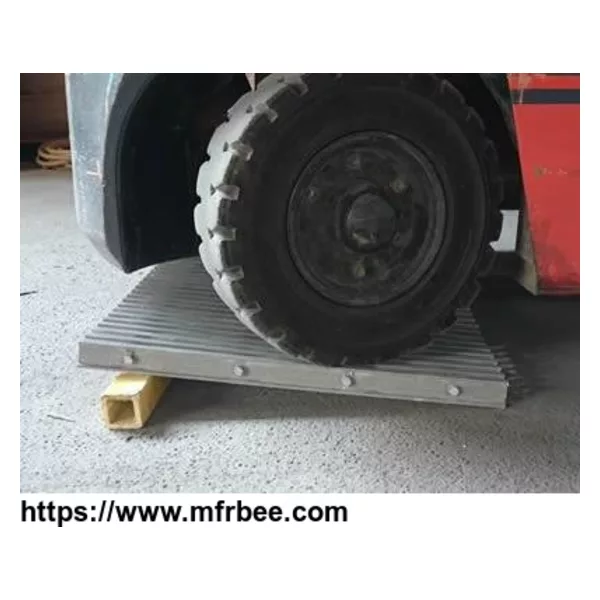

HDFG-01: Heavy duty fiberglass grating in dark gray, which is the most common used colour.One piece of heavy duty fiberglass grating is installed above the drainage hole and one fork truck wheel is on it.

HDFG-02: Gray heavy duty fiberglass grating for applications where heavy loads are required in corrosive environment.

One piece of pultruded high load capacity fiberglass grating in dark gray.

HDFG-03: FRP high load capacity molded grating in dark gray.It shows one truck wheel is pressing on the pultruded heavy duty fiberglass grating.

HDFG-04: Pultruded heavy duty FRP grating withstands the large burden from the fork truck.

Features

Corrosion resistance.

Non-conductive.

Fire retardant.

Low maintenance.

High strength-to-weight ratio.

Non-slip.

Low installation cost.

Specification

Resin system: polyester, vinyl ester.

Colours for choice: dark gray, light gray, yellow, and green.

Type: molded and pultruded.

Molded heavy duty fiberglass grating

The diagram show several parameters which measure the size of high load capacity molded FRP grating.

HDFG-05: Heavy duty molded FRP grating diagram.

Molded heavy duty fiberglass grating dimensions

Product code Thickness (inch) Load bar thickness Top/bottom (inch) Load bar center space A (inch) Cross bar center space B (inch) Open rate (%)

MHDG-15-0404 1.5 0.43/0.35 1.5 2 48

MHDG-15-0303 1.5 0.33/0.28 1.5 2 48

MHDG-20-0504 2.0 0.47/0.40 1.5 2 48

MHDG-20-0503 2.0 0.47/0.35 1.5 2 48

Note:

Standard panel size: 36" × 10', 48" × 6', 48" × 8', 48" × 12'.

Other meshes and panel sizes are available upon request.

Pultruded heavy duty fiberglass grating

The diagram show several parameters which measure the size of high load capacity pultruded FRP grating.

HDFG-06: Pultruded heavy duty FRP grating diagram.

Pultruded heavy duty fiberglass grating dimensions

Product code Open area (%) Bar depth (inch) Load bar width (inch) Load bar centers (inch) Cross bar spacing (inch)

PHDG-10-10 40 1.0 0.6 1.0 6

PHDG-10-12 50 1.0 0.6 1.2 6

PHDG-10-15 60 1.0 0.6 1.5 6

PHDG-15-10 40 1.5 0.6 1.0 6

PHDG-15-12 50 1.5 0.6 1.2 6

PHDG-15-15 60 1.5 0.6 1.5 6

PHDG-20-10 40 2.0 0.6 1.0 6

PHDG-20-12 50 2.0 0.6 1.2 6

PHDG-20-15 60 2.0 0.6 1.5 6

PHDG-25-10 40 2.5 0.6 1.0 3

PHDG-25-12 50 2.5 0.6 1.2 3

PHDG-25-15 60 2.5 0.6 1.5 3

Note: we offer sizes upon request.

Application

Flooring, platforms and ramps.

Long span walkways.

Loading docks.

Trenches at overhead doors.

Drainage channels.

Yard drains.
