Cooling tower vertical fills

Cooling tower vertical fills feature vertical flow channels with large openings which produces high water speed for creating anti-fouling environment in the fill. It is suitable for counter-flow cooling towers where water quality is not very good.

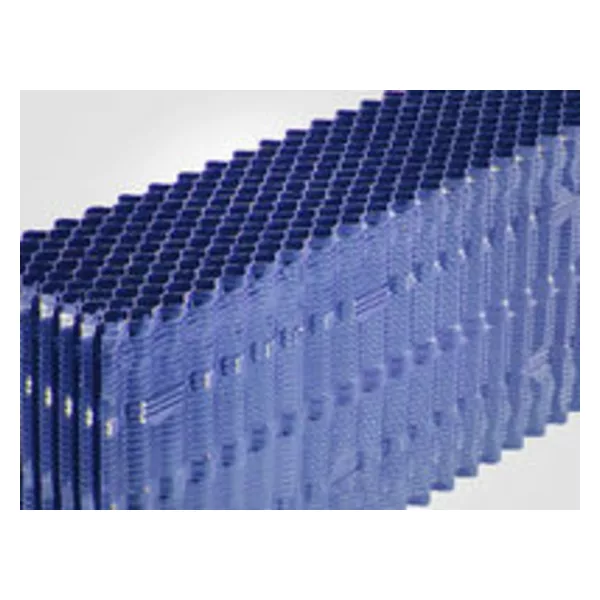

There is one pack of blue vertical fill for cooling tower, it has vertical flow channel.

We provide you with blue cooling tower vertical fill, which could create anti-fouling environment in the fill.There is one mass of black cooling tower vertical fill, the side face of it has honeycomb profile.

Black cooling tower vertical fill is also popularly used as it has high thermal performance.

Feature

Larger flute openings for maximum water speed.

Proprietary edge cutting technology produces square packs which directs water to both sides efficiently.

Bonded edge with dedicated bond points for added strength and durability.

Specification

Material: PVC, HPVC, PP, ABS, HIPS.

Surface area: 131-154 m2/m3.

Sheet spacing: 19-38 mm.

Flute angle: 0°.

Media pack size:

Depth: 250-1000 mm.

Width: 79-610 mm.

Length: 305-3658 mm.

Application

Cooling tower vertical flow fill is used in applications where circulating water contains high levels of suspended solids, for example, water from high cycles of concentration, rivers, or seawater.
