We offer several types of special cooling tower fills for some specific towers. They have different surface configurations with each other for counter flow and cross flow towers. Users could choose
the suitable one for the project.

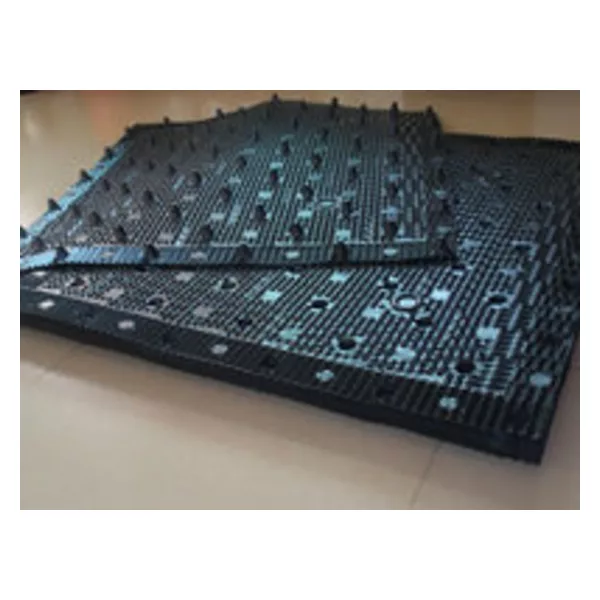

There is one special cooling tower fill pack on the ground, the top two pieces are used together.
The special cooling tower fills has male and female pieces which are aligned with each other, forming robust structure.This piece of cooling tower fill is square, and it has large mount of raising
points.
This kind of special cooling tower fill has many raising points on the surface for more contact of air and water.
One piece of gray cooling tower fill is leaned upon the wall, the configuration of the raising surface is w wave.
This kind of gray cooling tower fill has "w" wave profile on the surface for some special cooling tower.Many pieces of black cooling tower fills are piled with each other on the pallet, each
piece has twelve parts with same profile.
Special cooling tower fills are usually stacked neatly on the pallet for transport.
The picture shows many pieces of special cooling tower fills in black are just made in the warehouse.
This kind of special cooling tower fills are specially made for some cooling towers and the three holes on either end are used for connection.There is one piece of gray cooling tower fill just made
in the warehouse.
One piece of gray cooling tower fill is just made, and the length could be cut to size.
There is one piece of special cooling tower fill on the ground, it is blue and has uniform raised points.
The special cooling tower fill in blue with uniform points is specially suited for cross flow towers.There is one mass of black cooling tower fill with irregular trapezoidal shape.
This kind of special shape cooling tower fills are specifically used for round shape cooling tower, together with round cooling tower fills.
There is one couple of gray cooling tower fills, and they are packaged by scotch tape at one end.
We offer this kind of special cooling tower fills for some towers, with good thermal performance and long service life.One kind of special cooling tower fill is manufactured by the machine.
The special cooling tower fill has surface with alternate trapezoidal and inverted trapezoidal profile.
Feature
Light weight for easy transportation.
Easy installation saves labor cost.
Chemical resistance.
Efficient cooling effect.
Specification
Thickness of each piece: 0.28-0.5 mm.
Pitch fins (mm): 16, 18, 18.5, 20.
Dimension (mm): 400 × 750, 600 × 750, 800 × 750, 500 × 850, 850 × 1000, 1000 × 1000, 1000 × 1300, 950 × 950, 950 × 1270.
Package: Stacked together before placed onto the pallet.
Note: We offer cut to size service.
