Heliport Beacon
Product Quick Detail
- Packaging
- Customized Carton
- Delivery
- 15 Days
Specifications

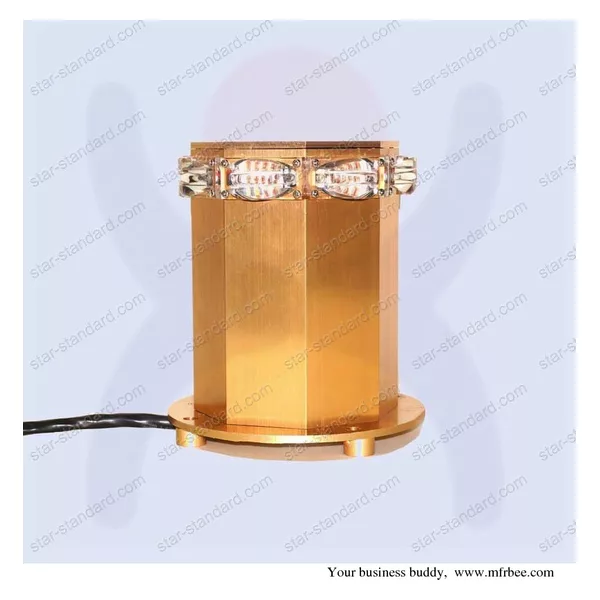

XB-ZDB1L is a flashing white beacon light and can be installed in or adjacent heliports. The product do better be fixed in the elevated position and can send out white omnidirectional equally duplicated short-flashing light signal, which provides a distant visual guiding to the pilots especially when it is hard to distinguish the heliports by the pilots. If the helicopters are in the final approach and touchdown process, the heliport beacons make the pilots feel the glare, the heliport beacons can be closed or subject to lower light intensity by 100% or 3%.
Patents:
- Developed product and owns independent intellectual property rights for product
- Optical lens which is solely developed by our company and used at product is patented as invention.
- Patent number is 816343
Features:
- As result of using patented optical lens in product and applying single high efficiency LED as light source, product obtains:
- Brilliant optical effects
- Very high efficiency of light source conversion
- Evident effect of energy-saving
- Rated power: 50W
- As cooling and structural parts of product are made of lightweight aluminum alloy and unique structure of cooling focuses on dealing with conduction, convection and radiation at same time, the product processes:
- Nice effect of cooling
- Lightweight structure
- Small size
- 1.8kg weight
- Easy to transportation and install
- As to driving features of LED lights, driving power is used for product, which leads to:
- Wide working voltage input (input voltage: 100 to 250V AC)
- Constant current output
- Brilliant stability of driving
- Long service life
Compliance with standards:
- Technology standards for Civilian Heliport(MH5013-2008)
- ICAO Annex 14 Vol II (Heliport)
Warranty declaration:
- Equipment have three-year quality-guarantee and five-year maintenance-guarantee
-
Man-made damage or force majeure voids warranty
