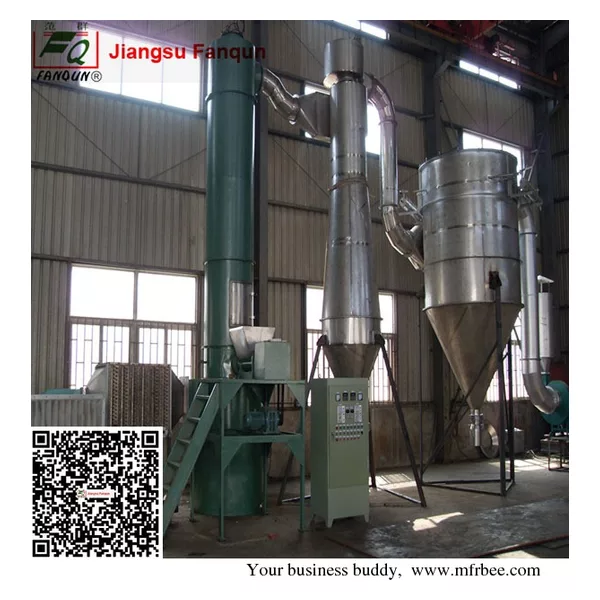

Jiangsu Fanqun XSG Revolving Flash Spray Dryer

Jiangsu Fanqun XSG Revolving Flash Spray Dryer ❤ Jiangsu Fanqun Air Stream Dryer ❤ Jiangsu Fanqun Drying Equipment

*FEATURES:

Because the raw material particulate exists in high dispersing state caused by centrifuge, shearing, impacting and rubbing effect . Moreover the relative velocity between solid and gas phases is high, so it strengthens the process of heat exchange. Therefore the machine has strong drying capacity;

Dry gas enters into the bottom of drier and produces strong rotating air stream that exerts strong rushing effect to raw material on the wall, therefore the phenomenon of stricking on the wall is removed;

At the bottom of dryer, where is high temperature area, heat sensitivity raw material can not contact with heat surface directly, therefore it solves the carbonization and color change problems of heat sensitivity raw material;

Because gas speed at circle inside the drying chamber is high and the staying time of raw material is short, high efficiency and quick speed can be realized. It is possible for small equipment to carry out large scale production;

There are rotational flow pieces and elutriation ring inside the drying chamber. It is used to control the moisture and granule of raw material to the needed level.

*SCOPE OF APPLICATION ORGANIC COMPOUNDS:

Fenatrol ( insecticide of agrochemicals ), cadmium laurate, benzoic acid, germicide, sodium oxalate, cellulose acetate and so on.

Dyestuff: anthraquinone, black ferric oxide, indigo blue pigment, butyric acid, titanium hydroxide, zinc sulfide, all kinds of intermediate of azo dye-stuff.

Inorganic compounds: borax , calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate , antimony trioxide , all kind of heavy metallic salt, synthetic synthetic cryolite and so on. Ceramics: kaoline, silicone trioxide, clay and so on.

Foodstuff: soya protein, agglomerative starch, lees, triticin, wheat starch and so.

*Note:

1. The sprayed amount of moisture is calculated when the temperature of inlet is 180. And the temperature of outlet is 80.

2. The equipped capacity above mentioned is standard.

3. The power can also be decreased in accordance with practical conditions.

*About Jiangsu Fanqun Air Stream Dryer

We provide XSG Revolving Flash Spray Dryer; QG FG Air Stream Dryer.

The air stream dryer is widely applicable to the wet material dispersed and remove material surface moisture. It can be used for drying powder, granule raw materials in foodstuff industry, chemical industry, pharmaceutical industry, construction materials industry, etc. Such as starch, glucose, fish meal, sugar, feed, plastic resins, dyes, etc.
