Welded Animal Pen and Cage

It is impossible for animal to be under close surveillance or limited in a small cage all day long. Animal Enclosure is exactly the product to provide animal a secure protection and a play allowable enclosure.

To form an enclosure, the welded wire panels and posts are two essential elements. To provide a high quality service, ground anchor, divider grill, floor pad, roof panel and sunscreen are all available under request. Animal rehabilitation clinics, animal farms, zoo and private home all could use animal cage and exercise play pen.

A dog sits inside a galvanized round exercise pen.

AE-01: Galvanized panels made a exercise pen for dog to stay or play.A lock is welded onto welded wire mesh panels and posts.

AE-02: A welded integration of lock, posts and panels.

Specifications:

Materials: galvanized wire.

Wire diameter: 3–5 mm.

Mesh pattern: 50 mm × 100 mm, 60 mm × 120 mm, 100 mm × 200 mm.

Animal exercise play pen size:

Eight panels measuring 24" width with height varies from 24" to 48".

Eight panels measuring 31.5 inches high by 31.5 inches wide.

Animal cage size (W × L × H)

Medium animal: 19 × 21.5 × 30 inches, 22 × 24.5 × 36 inches.

Large animal: 27.5 × 30 × 42 inches, 29 × 31.5 × 48 inches.

X large animal: 4 × 5 × 6 feet, 5 × 5 × 6 feet.

XX large animal: 4 × 6 × 10 feet, 5 × 6 × 10 feet, 6 × 6 × 10 feet, 8 × 6 × 10 feet.

Surface treatment: galvanized wire coated with powder coating.

Colors: black (RAL 9005), silver. All RAL color is available.

Accessories: posts, ground anchor, divider grill, floor pad, roof panel and sunscreen, metal clips, screw, nuts, bolts, washer, etc.

Features:

Provide a secure place for animals to run, exercise and rest.

Raised post legs for easy cleaning.

ground anchor for solid grip holding ability.

Secure latch which can't be opened by animal self.

Divider grill for many animals.

Floor pad for comfort.

No protruding wire to injure animal.

Easy to install, disassemble and fold for secondary use and storage.

Applications:

Our welded wire mesh panels made animal enclosures fit for medium and large animals like dog and tiger. It is allowable for both indoor and outdoor environments, soft soil and hard surface like lawn, dirt, carpet with different stakes. Proper sites to use our product includes:

Zoo.

Animal farm.

Private home.

Animal rehabilitation clinics.

Professional boarding facilities.

Veterinarians.

Animal hospitals.

Animal control officers, etc.

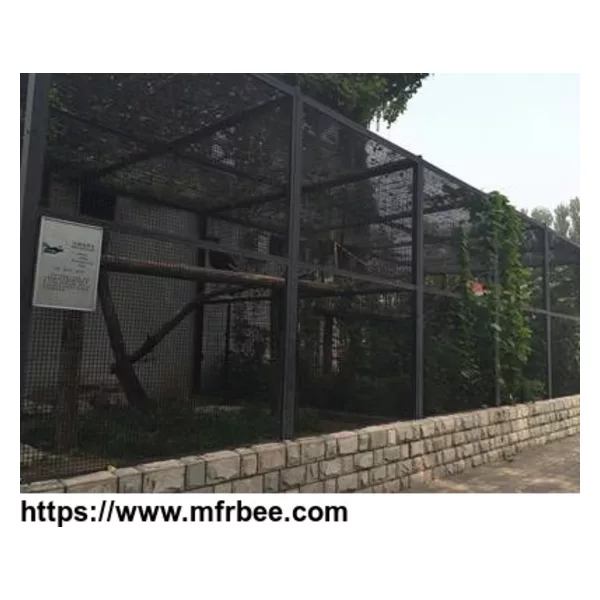

Southern ground-hornbill's huge made from black PVC coated panels cage has 12 panels in the facade of the cage in a zoo.

AE-03: Welded cage used in zoo. Cage with small mesh openings prevents birds from hurting tourists and provides birds a spacious and comfortable place without affecting watching them.Welded wire panels are installed upon wooden posts and base feet, with wooden partitions to divide 3 dogs.

AE-04: Welded cage used in animal farm. Welded wire panels could be sold separately without posts and base feet for a cost effectiveness.

A square pen with a dog inside. The picture in bottom shows panels shaped into 4 figures: circle, fence, square, rectangle.

AE-05: Welded cage used in private home. Dog inside could play and rest in this exercise pen with secure assurance. Four options of dealing with 8 panels.

Note:

Please pick your enclosure type and size after considering of the weight, the degree of hyperactivity of animal and the area size of your site.

Panels could be sold separately to accommodate your repairing work.

Eight 24'' width panels could be installed into octagon, square, rectangle shape enclosure or as a fence.

Several panels could be installed on the top of each other to achieve a higher height.

Customized size is available under request.

Animal Enclosure panels packaging:

Animal Enclosure panels packed in wooden pallets and enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.
