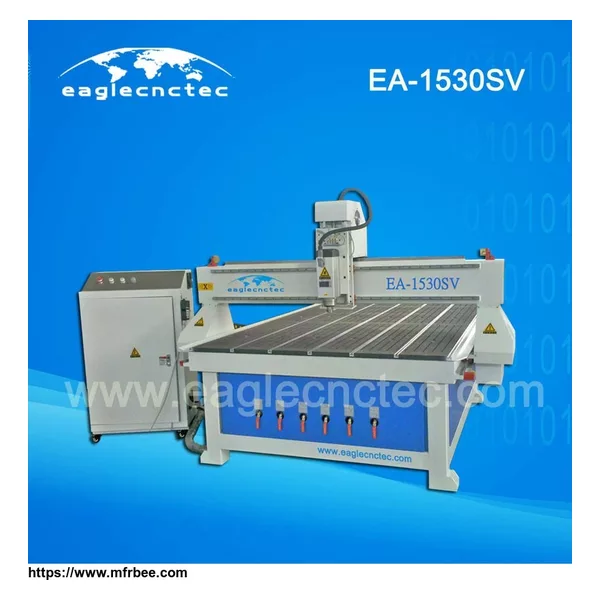

Jinan EagleTec CNC Machinery Co.,Ltd.
From: https://www.eaglecnctec.com
Working Size (X Y Z) | 1500×3000×200 mm |
Driving Motor | Stepping big size |
Controller | RichAuto DSP |
Command | G-code |
Max.Traveling Speed | 35 m/min |
Work-Holding | By Vac-sorb or Clamp, both available |
Vacuum Pump | 5.5KW water ring, flow rate 230 CBM/hour |
X Y Transmission | Rack and pinion transmission |
Z Transmission | Taiwan TBI rolling ballscrew |
Spindle | 4.5 kw , China air cooling, 0-18000 rpm variable speed |
Collet Size | ER25 , available diameter of cutter bits φ3.175-φ16mm |
Working Power | 380V/50-60Hz, 3 Phase 4 Wire |
Max.Power Consumption | 14 KW |
Net Weight | 1500 KGS |
Packing | Plywood case suitable for sea shipment |
