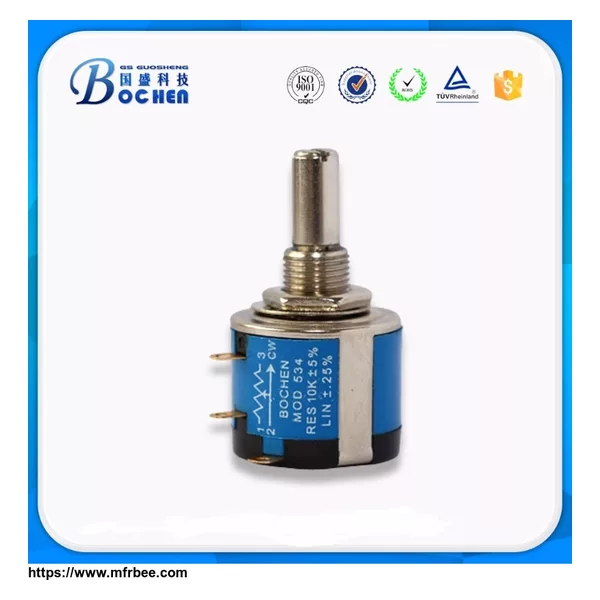

534 Precision Multiturn Wirewound Rotary Potentiometer

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Electrical Characteristics: Standard Resistance Range: 100Ω-100KΩ. . Resistance Tolerance: ±5% . Independent Linearity: ±0.25% Terminal Resistance: ≤0.2%R or5 Ω. Contact Resistance Variation: ≤3%R or 3 Ω. Insulation Resistance: R1≥1GΩ. Withstand Voltage: 101.3KPa 500V 8.5KPa 470V. Effective Electrical Travel: 3600°±10°. Envionment Characteristics: Rated Power: 70℃ 2W; 125℃

0W. Temperature Range: -55~℃125℃. Temperature Coefficient: ±250、±100 ppm/°C . Standard Packing: 50PCS/Box.

Rotary Potentiometer,534 potentiometer

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
Founded Year:1998
Address:NO.29, Hegang Road, modern Industrial Port, Chengdu China
Contact:Jack Liu

534 Precision Multiturn Wirewound Rotary Potentiometer
