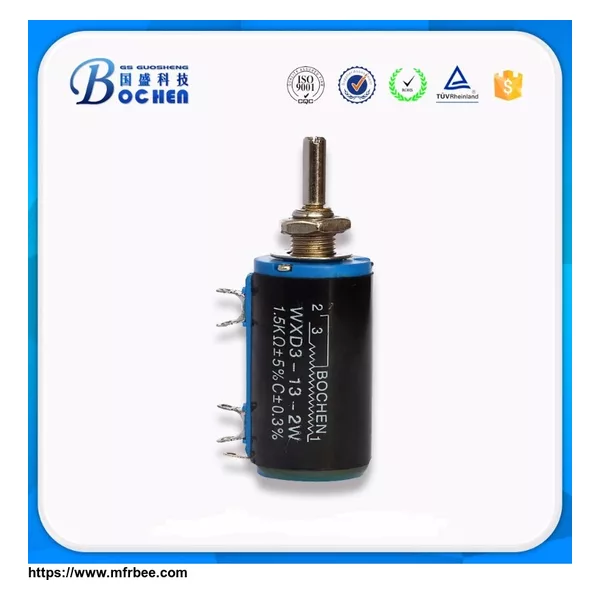

WXD3-13 BOCHEN Precision Multiturn Wirewound potentiometer
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
wxd3-13 precision potentiometer
Electrical Characteristics: Standard Resistance Range: 100Ω-100KΩ. . Resistance Tolerance: ±5% . Independent Linearity: ±0.25% Terminal Resistance: ≤0.2%R or5 Ω. Contact Resistance Variation: ≤3%R
or 3 Ω. Insulation Resistance: R1≥1GΩ. Withstand Voltage: 101.3KPa 500V 8.5KPa 470V. Effective Electrical Travel: 3600°±20°. Envionment Characteristics: Rated Power: 70℃ 2W; 125℃
0W. Temperature Range: -55~℃125℃.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:1998
- Address:NO.29, Hegang Road, modern Industrial Port, Chengdu China
- Contact:Jack Liu
