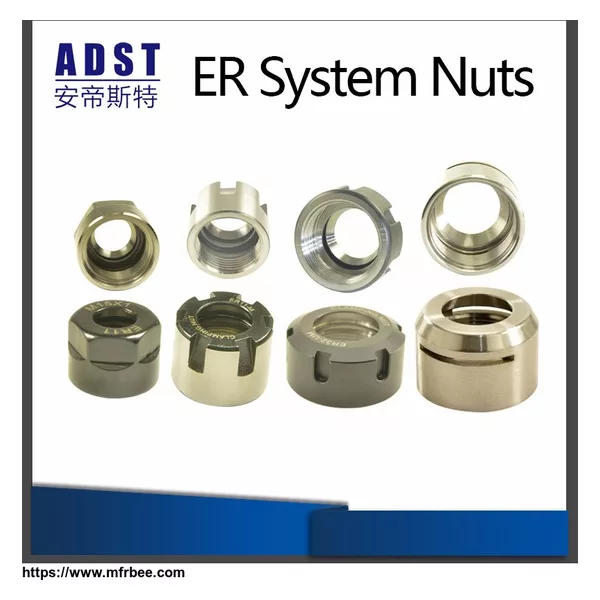

High Quality Er Nut Fastener Nail CNC Machine Tool
Product Quick Detail
- FOB Price
- USD $1.60 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- 1pcs each box
- Delivery
- 15 Days
Specifications
| Model | Specification | D | H | Edge length | Thread |
| ER8 | A | 13 | 12 | 12 | M10*0.75 |
| M | 12 | 12 | | M10*0.75 | |
| UMA | 13 | 13 | | M10*0.75 | |
| ER11 | A | 19 | 12.5 | 17 | M14*0.75 |
| A | 19 | 13.7 | 17 | M15*1.0 | |
| A (7.5 lengthen) | 19 | 14 | 17 | M14*0.75 | |
| A (9 long) | 19 | 16 | 17 | M14*0.75 | |
| B | 19 | 12.5 | 17 | M13*0.75 | |
| M | 16 | 12 | | M13*0.75 | |
| M | 19 | 12 | | M14*0.75 | |
| UM | 17.5 | 12 | | M14*0.75 | |
| D(Square) | 16 | 12 | 14 | M13*0.75 | |
| ER16 | A | 28 | 19 | 25 | M22*1.5 |
| M | 22 | 18 | | M19*1.0 | |
| B | 25 | 20 | 23 | M20*1.0 | |
| B (thin) | 25 | 19 | 22 | M19*1.0 | |
| B (thick) | 28 | 19 | 25 | M19*1.0 | |
| MS | 22 | 18 | | M19*1.0 | |
| ER20 | A | 34 | 20.5 | 30 | M25*1.5 |
| A (lengthen) | 34 | 24 | 30 | M25*1.5 | |
| B(out diameter 27) | 27 | 23 | 24 | M24*1.0 | |
| B | 34 | 21 | 30 | M24*1.0 | |
| M | 28 | 19 | | M24*1.0 | |
| UM | 34 | 21 | | M25*1.5 | |
| MS | 28 | 19 | | M24*1.0 |
| ER25 | A | 42 | 22 | 38 | M32*1.5 |
| M | 35 | 20 | | M30*1.0 | |
| UM(chute) | 42 | 22 | | M32*1.5 | |
| UM(Straight slot) | 42 | 22 | | M32*1.5 | |
| ER32 | UM(Straight slot) | 50 | 24.4 | | M40*1.5 |
| UM(chute) | 50 | 24.5 | | M40*1.5 | |
| ER40 | UM(Straight slot) | 63 | 28 | | M50*1.5 |
| UM(chute) | 63 | 28 | | M50*1.5 |
Product detail display:
Chacacterristic:
- with friction bearing for higher clamping force
- with sealing disk for coolant through tools
- High speed clamping nut (for high rpm)
- Externally threaded clamping nut for floating chucks
- Protection Against Corrosion With a special treatment of the surface for longer life.
- Rounded thread start prevents damaging of collets on tool changes.
- with sealing disk for coolant through tools
- High speed clamping nut (for high rpm)
- Externally threaded clamping nut for floating chucks
- Protection Against Corrosion With a special treatment of the surface for longer life.
- Rounded thread start prevents damaging of collets on tool changes.
Assembling Collet
Insert groove of the collet into eccentric ring of the clamping nut at the mark on the bottom of the nut. Push collet in the direction of the arrow until it clicks in. Insert tool. Screw nut with collet onto tool holder.
Removing Collet
After the nut is unscrewed from the toolholder, press on the face of the collet while simultaneously pushing sideways on the back of the collet opposite the mark until it disengages from the clamping nut.
Removing Collet
After the nut is unscrewed from the toolholder, press on the face of the collet while simultaneously pushing sideways on the back of the collet opposite the mark until it disengages from the clamping nut.
