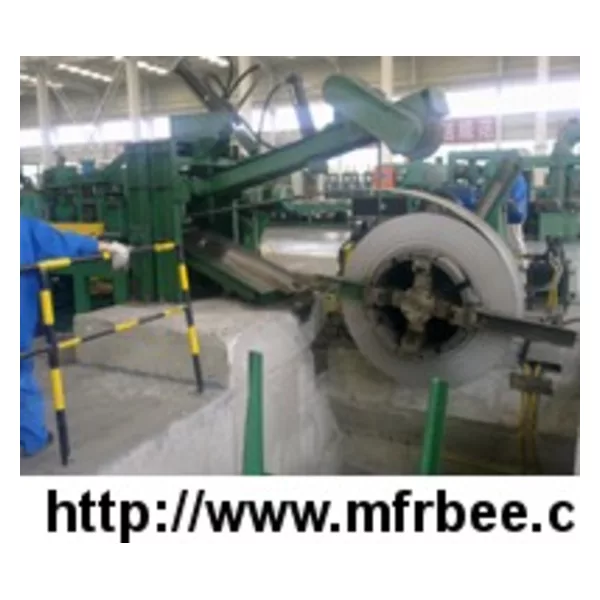

Uncoiler for ERW Tube mill
Product Quick Detail
- China
- hebei
- Packaging
- seaworthy packing
- Delivery
- 1-10 months
Specifications
Models of uncoiler
| Type | Width(mm) | Thickness(mm) | Coil ID(m) | Coil OD(mm) | Weight(mt) | Structure |
| KJ32 | 40-120 | 0.6-1.6 | 420-620 | Max.1600 | Max.1.5 | Double |
| KJ50 | 60-120 | 0.9-2.0 | 420-620 | Max.1600 | Max.1.8 | Double |
| KJ76 | 100-260 | 1.2-3.5 | 420-620 | Max.1800 | Max.5.0 | Single |
| KJ89 | 100-300 | 1.75-5-4.0 | 450-550 | Max.1800 | Max.5.0 | Single |
| KJ114 | 120-400 | 2.0-6.0 | 450-550 | Max.2000 | Max.7.5 | Single |
| KJ165 | 160-520 | 2.5-7.0 | 450-550 | Max.2000 | Max.10.0 | Single |
| KJ219 | 240-700 | 3.5-7.0 | 450-550 | Max.2000 | Max.10.0 | Single |
| KJ273 | 320-900 | 4.0-10.0 | 450-550 | Max.2000 | Max.15.0 | Single |
| KJ325 | 500-1100 | 5.0-12.7 | 580-760 | Max.2000 | Max.25.0 | Double |
| KJ406 | 600-1300 | 5.0-14.0 | 580-760 | Max.2000 | Max.25.0 | Double |
| KJ508 | 700-1650 | 6.0-16.0 | 610-760 | Max.2200 | Max.35.0 | Double |
| KJ630 | 900-2000 | 6.0-22.0 | 780-860 | Max.2200 | Max.40.0 | Double |
- Country:
- Business Type:
- Market:
- Founded Year:
- Address:No.298 of Zhonghua North Street
- Contact:iris zhang
