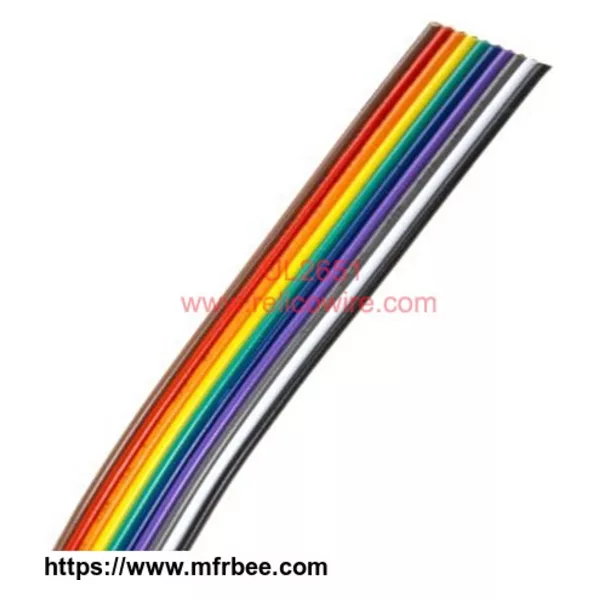

UL2651 PVC Insulated Flat Ribbon Electrical Cable (300V)
Conductor | Insulation | Electric Resistance |
Package |
|||||
AWG |
Construction |
Diameter mm | Conductors' Number |
Thickness |
Spacing |
Wire Diameter mm |
(Ω/KM) | M/Roll |
28 | 7*0.127 | 0.38 | 2 | 0.285 | 2.00 | 1.97 | 239 | 305 |
3 | 2.99 | |||||||
4 | 4.01 | |||||||
5 | 5.03 | |||||||
6 | 6.05 | |||||||
7 | 7.07 | |||||||
8 | 8.09 | |||||||
26 | 7*0.16 | 0.48 | 2 | 0.25 | 2.00 | 2.00 | 150 | 305 |
3 | 3.02 | |||||||
4 | 4.04 | |||||||
5 | 5.06 | |||||||
6 | 6.08 | |||||||
7 | 7.10 | |||||||
8 | 8.12 | |||||||
24 | 11*0.16 | 0.61 | 2 | 0.345 | 2.50 | 2.70 | 85.90 | 305 |
3 | 4.10 | |||||||
4 | 5.50 | |||||||
5 | 6.90 | |||||||
6 | 8.30 | |||||||
22 | 17*0.16 | 0.76 | 2 | 0.26 | 2.50 | 2.70 | 55.00 | 305 |
3 | 4.10 | |||||||
4 | 5.50 | |||||||
5 | 6.90 | |||||||
6 | 8.30 |
